Bearings - Tapered Roller Cone

4 Products in this selection
  • Replacements for existing tapered roller cones (inner part). Match with part number on your existing bearing. It is recommended that you change both cup and cone whenever possible.
Additional resources:
Tapered Roller Cups
Tapered Roller Imperial Sets
Tapered Roller Metric Sets
Inside Diameter Cone Width Matching Cups rs1 min rs2 min Indicative
19.050
mm 		19.050
mm 		09194, 09195, 09196
 1.300
mm 		1.300

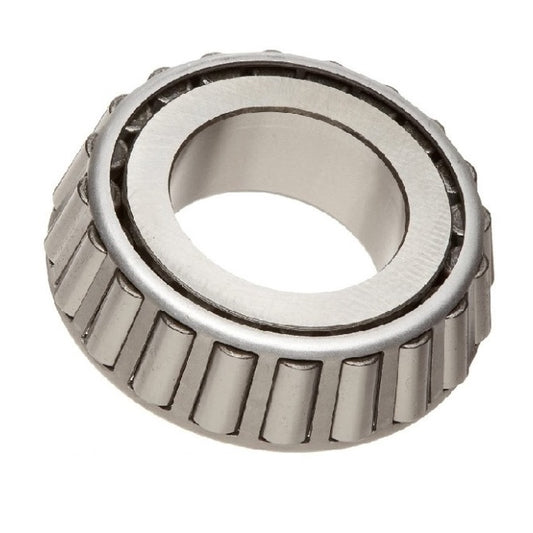

mm 		1120973 | 09074 --- Bearings - 19.05 mm x 19.05 mm 09194, 09195, 09196
Material: Chrome Steel Cone    Basic Dynamic Load Rating: 37500 Cr (N)    Basic Static Load Rating: 37500 Cor (N)    Limiting Speed with Grease: 8500 RPM
Part Number: 09074 Bearings - 19.05 mm x 19.05 mm 09194, 09195, 09196
Out of Stock
Backorder Now | Backorders for more can be expected around Mon, Dec 09, 2024
$63.50 AUD
$63.50 AUD
Each
Inside Diameter Cone Width Matching Cups Indicative
19.050
mm 		19.050
mm 		09194, 09195, 09196
 1120973 | 09074 --- Bearings - 19.05 mm x 19.05 mm 09194, 09195, 09196
Material: Chrome Steel Cone    rs1 min: 1.300 mm    rs2 min: 1.300 mm    Basic Dynamic Load Rating: 37500 Cr (N)    Basic Static Load Rating: 37500 Cor (N)    Limiting Speed with Grease: 8500 RPM
Part Number: 09074 Bearings - 19.05 mm x 19.05 mm 09194, 09195, 09196
Out of Stock
Backorder Now | | Backorders for more can be expected around Mon, Dec 09, 2024
$63.50 AUD
$63.50 AUD
Each
44.450
mm 		30.302
mm 		3720, 3730
 3.500
mm 		0.800
mm 		1157260 | 3780 --- Bearings - 44.45 mm x 30.302 mm 3720, 3730
Material: Chrome Steel Cone    Basic Dynamic Load Rating: 102000 Cr (N)    Basic Static Load Rating: 134000 Cor (N)    Limiting Speed with Grease: 3800 RPM
Part Number: 3780 Bearings - 44.45 mm x 30.302 mm 3720, 3730
Out of Stock
Backorder Now | Backorders for more can be expected around Mon, Dec 09, 2024
$64.86 AUD
$64.86 AUD
Each
44.450
mm 		30.302
mm 		3720, 3730
 1157260 | 3780 --- Bearings - 44.45 mm x 30.302 mm 3720, 3730
Material: Chrome Steel Cone    rs1 min: 3.500 mm    rs2 min: 0.800 mm    Basic Dynamic Load Rating: 102000 Cr (N)    Basic Static Load Rating: 134000 Cor (N)    Limiting Speed with Grease: 3800 RPM
Part Number: 3780 Bearings - 44.45 mm x 30.302 mm 3720, 3730
Out of Stock
Backorder Now | | Backorders for more can be expected around Mon, Dec 09, 2024
$64.86 AUD
$64.86 AUD
Each
66.675
mm 		38.354
mm 		HM212010
 3.500
mm 		1.500
mm 		1173086 | HM212049 --- Bearings - 66.675 mm x 38.354 mm HM212010
Material: Chrome Steel Cone    Basic Dynamic Load Rating: 187000 Cr (N)    Basic Static Load Rating: 243000 Cor (N)    Limiting Speed with Grease: 3000 RPM
Part Number: HM212049 Bearings - 66.675 mm x 38.354 mm HM212010
Out of Stock
Backorder Now | Backorders for more can be expected around Mon, Dec 09, 2024
$105.32 AUD
$105.32 AUD
Each
66.675
mm 		38.354
mm 		HM212010
 1173086 | HM212049 --- Bearings - 66.675 mm x 38.354 mm HM212010
Material: Chrome Steel Cone    rs1 min: 3.500 mm    rs2 min: 1.500 mm    Basic Dynamic Load Rating: 187000 Cr (N)    Basic Static Load Rating: 243000 Cor (N)    Limiting Speed with Grease: 3000 RPM
Part Number: HM212049 Bearings - 66.675 mm x 38.354 mm HM212010
Out of Stock
Backorder Now | | Backorders for more can be expected around Mon, Dec 09, 2024
$105.32 AUD
$105.32 AUD
Each
90.000
mm 		40.000
mm 		HM218210
 7.000
mm 		3.500
mm 		1183600 | HM218248 --- Bearings - 90 mm x 40 mm HM218210
Material: Chrome Steel Cone    Basic Dynamic Load Rating: 220000 Cr (N)    Basic Static Load Rating: 325000 Cor (N)    Limiting Speed with Grease: 2300 RPM
Part Number: HM218248 Bearings - 90 mm x 40 mm HM218210
Out of Stock
Backorder Now | Backorders for more can be expected around Mon, Dec 09, 2024
$138.05 AUD
$138.05 AUD
Each
90.000
mm 		40.000
mm 		HM218210
 1183600 | HM218248 --- Bearings - 90 mm x 40 mm HM218210
Material: Chrome Steel Cone    rs1 min: 7.000 mm    rs2 min: 3.500 mm    Basic Dynamic Load Rating: 220000 Cr (N)    Basic Static Load Rating: 325000 Cor (N)    Limiting Speed with Grease: 2300 RPM
Part Number: HM218248 Bearings - 90 mm x 40 mm HM218210
Out of Stock
Backorder Now | | Backorders for more can be expected around Mon, Dec 09, 2024
$138.05 AUD
$138.05 AUD
Each
