Bearings - Single Row Ball - Unflanged - Precision - Ceramic ZrO2

7 Products in this selection
  • Excellent performance in electrical and magnetism sensitive applications. Not for High Speed. Full ceramic zirconia.
  • Applications include cryopumps, medical applications, semiconductors, turbine flow meters, food processing, robotics and optics.
  • Wear and corrosion resistance. Depending on the application, these bearings may run lubrication free or lubricated by the medium in which they are submerged.
  • Cages of PTFE or Glass Fibre Reinforced Nylon. Can be made from special aviation aluminum on request.
  • ZrO2 standard material for balls and rings. Si3N4 available to special order.
  • High and low- temperature application. Up to 250 Deg C with PTFE Cage and 130 Deg C with Nylon Cage. Up to 1000 deg C without a cage or seals.
Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Ceramic Bearings PDF Download

A more comprehensive listing may be found on the MBA Minibearings main store at Bearings - Single Row Ball - Unflanged - Precision - Ceramic ZrO2.
ID (d) OD (D) Width (B) Inner Ring Width (Bn) Flange Diameter (DF) Flange Width (BF) Indicative
8.000
mm
+ 0.000 / - 0.0075 		16.000
mm
+ 0.000 / - 0.0075 		5.000
mm
+ 0.000 / - 0.125 		1082380 | CZR-688A-TTS-MC34-TF-DRY --- Single Row Ball Bearings - 8x16x5 mm - Ceramic Zirconia - PTFE Cage - PTFE Seals
Material: Ceramic Zirconia - PTFE Cage - PTFE Seals    Precision Grade: Abec 1    Closure Type: TTS    Bearing Type: Radial    Lubricant: No Lube
Part Number: CZR-688A-TTS-MC34-TF-DRY Single Row Ball Bearings - 8x16x5 mm - Ceramic Zirconia - PTFE Cage - PTFE Seals
1 Available Now | Further orders can be expected around Wed, May 14, 2025
$36.23 AUD
$36.23 AUD
Each
ID (d) OD (D) Width (B) Inner Ring Width (Bn) Indicative
8.000
mm
+ 0.000 / - 0.0075 		16.000
mm
+ 0.000 / - 0.0075 		5.000
mm
+ 0.000 / - 0.125 		1082380 | CZR-688A-TTS-MC34-TF-DRY --- Single Row Ball Bearings - 8x16x5 mm - Ceramic Zirconia - PTFE Cage - PTFE Seals
Material: Ceramic Zirconia - PTFE Cage - PTFE Seals    Precision Grade: Abec 1    Closure Type: TTS    Bearing Type: Radial    Lubricant: No Lube
Part Number: CZR-688A-TTS-MC34-TF-DRY Single Row Ball Bearings - 8x16x5 mm - Ceramic Zirconia - PTFE Cage - PTFE Seals
1 Available Now | Further orders can be expected around Wed, May 14, 2025
$36.23 AUD
$36.23 AUD
Each
View the product page first if you are unsure.
8.000
mm
+ 0.000 / - 0.0075 		22.000
mm
+ 0.000 / - 0.010 		7.000
mm
+ 0.000 / - 0.125 		1082934 | CZR-608-TTS-MC34-TF-DRY --- Single Row Ball Bearings - 8x22x7 mm - Ceramic Zirconia - PTFE Cage - PTFE Seals
Material: Ceramic Zirconia - PTFE Cage - PTFE Seals    Precision Grade: Abec 1    Closure Type: TTS    Bearing Type: Radial    Lubricant: No Lube
Part Number: CZR-608-TTS-MC34-TF-DRY Single Row Ball Bearings - 8x22x7 mm - Ceramic Zirconia - PTFE Cage - PTFE Seals
3 Available Now | Further orders can be expected around Wed, May 14, 2025
$23.05 AUD
$27.65 AUD $23.05 AUD
Each
8.000
mm
+ 0.000 / - 0.0075 		22.000
mm
+ 0.000 / - 0.010 		7.000
mm
+ 0.000 / - 0.125 		1082934 | CZR-608-TTS-MC34-TF-DRY --- Single Row Ball Bearings - 8x22x7 mm - Ceramic Zirconia - PTFE Cage - PTFE Seals
Material: Ceramic Zirconia - PTFE Cage - PTFE Seals    Precision Grade: Abec 1    Closure Type: TTS    Bearing Type: Radial    Lubricant: No Lube
Part Number: CZR-608-TTS-MC34-TF-DRY Single Row Ball Bearings - 8x22x7 mm - Ceramic Zirconia - PTFE Cage - PTFE Seals
3 Available Now | Further orders can be expected around Wed, May 14, 2025
$23.05 AUD
$27.65 AUD $23.05 AUD
Each
View the product page first if you are unsure.
10.000
mm
+ 0.000 / - 0.0075 		26.000
mm
+ 0.000 / - 0.010 		8.000
mm

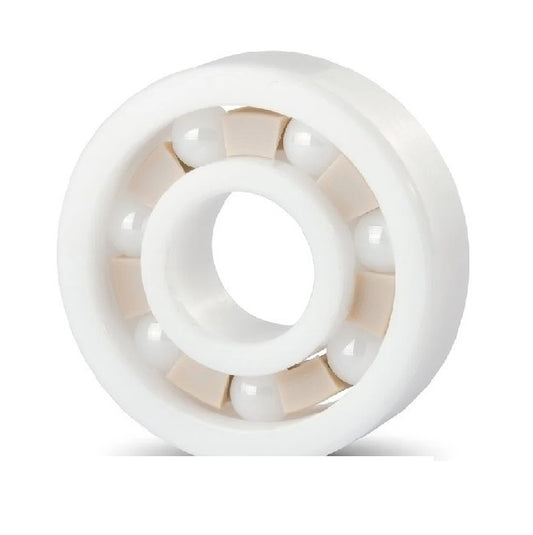

+ 0.000 / - 0.125 		1093406 | CZR-6000-TF-DRY --- Single Row Ball Bearings - 10x26x8 mm - Ceramic Zirconia - PTFE Cage
Material: Ceramic Zirconia - PTFE Cage    Precision Grade: Abec 1    Closure Type: Open    Bearing Type: Radial    Lubricant: No Lube
Part Number: CZR-6000-TF-DRY Single Row Ball Bearings - 10x26x8 mm - Ceramic Zirconia - PTFE Cage
2 Available Now | Further orders can be expected around Wed, May 14, 2025
$77.05 AUD
$92.45 AUD $77.05 AUD
Each
10.000
mm
+ 0.000 / - 0.0075 		26.000
mm
+ 0.000 / - 0.010 		8.000
mm
+ 0.000 / - 0.125 		1093406 | CZR-6000-TF-DRY --- Single Row Ball Bearings - 10x26x8 mm - Ceramic Zirconia - PTFE Cage
Material: Ceramic Zirconia - PTFE Cage    Precision Grade: Abec 1    Closure Type: Open    Bearing Type: Radial    Lubricant: No Lube
Part Number: CZR-6000-TF-DRY Single Row Ball Bearings - 10x26x8 mm - Ceramic Zirconia - PTFE Cage
2 Available Now | Further orders can be expected around Wed, May 14, 2025
$77.05 AUD
$92.45 AUD $77.05 AUD
Each
View the product page first if you are unsure.
10.000
mm
+ 0.000 / - 0.0075 		26.000
mm
+ 0.000 / - 0.010 		8.000
mm

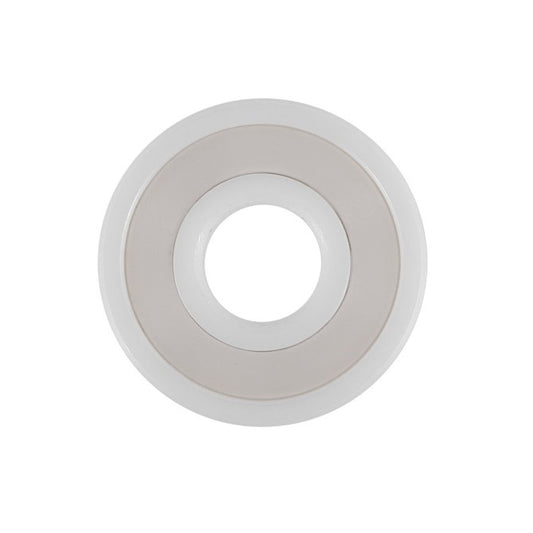

+ 0.000 / - 0.125 		1093409 | CZR-6000-TTS-C3-TF-DRY --- Single Row Ball Bearings - 10x26x8 mm - Ceramic Zirconia - PTFE Cage - PTFE Seals
Material: Ceramic Zirconia - PTFE Cage - PTFE Seals    Precision Grade: Abec 1    Closure Type: TTS    Bearing Type: Radial    Lubricant: No Lube
Part Number: CZR-6000-TTS-C3-TF-DRY Single Row Ball Bearings - 10x26x8 mm - Ceramic Zirconia - PTFE Cage - PTFE Seals
2 Available Now | Further orders can be expected around Wed, May 14, 2025
$44.68 AUD
$44.68 AUD
Each
10.000
mm
+ 0.000 / - 0.0075 		26.000
mm
+ 0.000 / - 0.010 		8.000
mm
+ 0.000 / - 0.125 		1093409 | CZR-6000-TTS-C3-TF-DRY --- Single Row Ball Bearings - 10x26x8 mm - Ceramic Zirconia - PTFE Cage - PTFE Seals
Material: Ceramic Zirconia - PTFE Cage - PTFE Seals    Precision Grade: Abec 1    Closure Type: TTS    Bearing Type: Radial    Lubricant: No Lube
Part Number: CZR-6000-TTS-C3-TF-DRY Single Row Ball Bearings - 10x26x8 mm - Ceramic Zirconia - PTFE Cage - PTFE Seals
2 Available Now | Further orders can be expected around Wed, May 14, 2025
$44.68 AUD
$44.68 AUD
Each
View the product page first if you are unsure.
10.000
mm
+ 0.000 / - 0.0075 		30.000
mm
+ 0.000 / - 0.010 		9.000
mm
+ 0.000 / - 0.125 		1093590 | CZR-6200-TF-DRY --- Single Row Ball Bearings - 10x30x9 mm - Ceramic Zirconia - PTFE Cage
Material: Ceramic Zirconia - PTFE Cage    Precision Grade: Abec 1    Closure Type: Open    Bearing Type: Radial    Lubricant: No Lube
Part Number: CZR-6200-TF-DRY Single Row Ball Bearings - 10x30x9 mm - Ceramic Zirconia - PTFE Cage
2 Available Now | Further orders can be expected around Tue, May 20, 2025
$121.23 AUD
$121.23 AUD
Each
10.000
mm
+ 0.000 / - 0.0075 		30.000
mm
+ 0.000 / - 0.010 		9.000
mm
+ 0.000 / - 0.125 		1093590 | CZR-6200-TF-DRY --- Single Row Ball Bearings - 10x30x9 mm - Ceramic Zirconia - PTFE Cage
Material: Ceramic Zirconia - PTFE Cage    Precision Grade: Abec 1    Closure Type: Open    Bearing Type: Radial    Lubricant: No Lube
Part Number: CZR-6200-TF-DRY Single Row Ball Bearings - 10x30x9 mm - Ceramic Zirconia - PTFE Cage
2 Available Now | Further orders can be expected around Tue, May 20, 2025
$121.23 AUD
$121.23 AUD
Each
View the product page first if you are unsure.
15.000
mm
+ 0.000 / - 0.0075 		35.000
mm
+ 0.000 / - 0.011 		11.000
mm
+ 0.000 / - 0.125 		1110086 | CZR-6202-TF-DRY --- Single Row Ball Bearings - 15x35x11 mm - Ceramic Zirconia - PTFE Cage
Material: Ceramic Zirconia - PTFE Cage    Precision Grade: Abec 1    Closure Type: Open    Bearing Type: Radial    Lubricant: No Lube
Part Number: CZR-6202-TF-DRY Single Row Ball Bearings - 15x35x11 mm - Ceramic Zirconia - PTFE Cage
2 Available Now | Further orders can be expected around Tue, May 20, 2025
$140.50 AUD
$140.50 AUD
Each
15.000
mm
+ 0.000 / - 0.0075 		35.000
mm
+ 0.000 / - 0.011 		11.000
mm
+ 0.000 / - 0.125 		1110086 | CZR-6202-TF-DRY --- Single Row Ball Bearings - 15x35x11 mm - Ceramic Zirconia - PTFE Cage
Material: Ceramic Zirconia - PTFE Cage    Precision Grade: Abec 1    Closure Type: Open    Bearing Type: Radial    Lubricant: No Lube
Part Number: CZR-6202-TF-DRY Single Row Ball Bearings - 15x35x11 mm - Ceramic Zirconia - PTFE Cage
2 Available Now | Further orders can be expected around Tue, May 20, 2025
$140.50 AUD
$140.50 AUD
Each
View the product page first if you are unsure.
20.000
mm
+ 0.000 / - 0.011 		47.000
mm
+ 0.000 / - 0.011 		14.000
mm

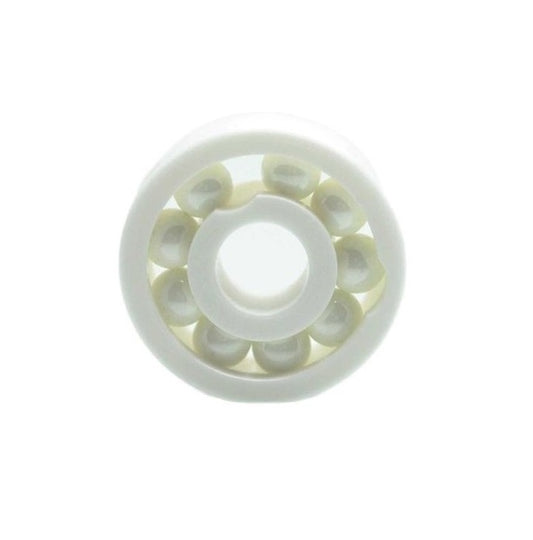

+ 0.000 / - 0.120 		1125409 | CZR-6204-FC-DRY --- Single Row Ball Bearings - 20x47x14 mm - Ceramic Zirconia - Full Complement
Material: Ceramic Zirconia - Full Complement    Precision Grade: Abec 1    Closure Type: Open    Bearing Type: Radial    Lubricant: No Lube
Part Number: CZR-6204-FC-DRY Single Row Ball Bearings - 20x47x14 mm - Ceramic Zirconia - Full Complement
3 Available Now | Further orders can be expected around Wed, May 14, 2025
$63.59 AUD
$76.31 AUD $63.59 AUD
Each
20.000
mm
+ 0.000 / - 0.011 		47.000
mm
+ 0.000 / - 0.011 		14.000
mm
+ 0.000 / - 0.120 		1125409 | CZR-6204-FC-DRY --- Single Row Ball Bearings - 20x47x14 mm - Ceramic Zirconia - Full Complement
Material: Ceramic Zirconia - Full Complement    Precision Grade: Abec 1    Closure Type: Open    Bearing Type: Radial    Lubricant: No Lube
Part Number: CZR-6204-FC-DRY Single Row Ball Bearings - 20x47x14 mm - Ceramic Zirconia - Full Complement
3 Available Now | Further orders can be expected around Wed, May 14, 2025
$63.59 AUD
$76.31 AUD $63.59 AUD
Each
View the product page first if you are unsure.
