Bearings - Single Row Ball - Unflanged - Precision - 17-4PH Stainless

Bearings -> Single Row Ball -> Unflanged -> Precision -> 17-4PH Stainless

There is only 1 product in the sub-categories of Bearings - Single Row Ball - Unflanged - Precision - 17-4PH Stainless. Browse the Bearings - Single Row Ball - Unflanged - Precision - 17-4PH Stainless products table.

Category Details

A selection of 17-4PH Stainless Precision Unflanged Single Row Ball Bearings. Excellent Corrosion and Heat resistance - Hardness is between 300 grades and 400 grades. SUS630 grade.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Standard bearing tolerances
  • Low load, low speed applications requiring maximum corrosion resistance.
  • Rubber seals are Nitrile but fluorine rubber may be available on request
  • Cages and shields from AISI 304 Stainless Steel.
  • Balls and races from SUS630 (17-4PH) Stainless Steel

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Bearings - Single Row Ball - Unflanged - Precision - 17-4PH Stainless category on the MBA Minibearings main store.
ID (d) OD (D) Width (B) Inner Ring Width (Bn) Flange Diameter (DF) Flange Width (BF) Indicative
ID (d)
10.000
mm
+ 0 / - 0.008
(Equiv. 0.394 in.)
OD (D)
26.000
mm
+ 0 / - 0.009
(Equiv. 1.024 in.)
Width (B)
8.000
mm
+ 0 / - 0.120
(Equiv. 0.315 in.)

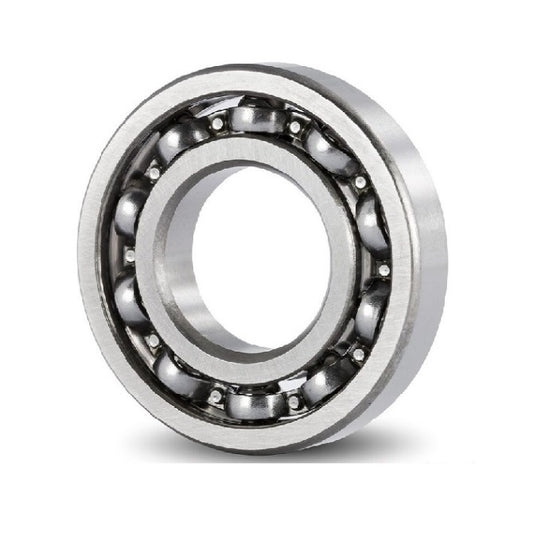

Single Row Ball Bearings - 10x26x8 mm - Stainless Steel 17-4 PH
Material: Stainless Steel 17-4 PH    Precision Grade: Semi-Precision    Closure Type: Open    Bearing Type: Radial    Information: Rockwell 85 HRB (Vickers HV170)
Part Number: S174-6000 (Each)
Single Row Ball Bearings - 10x26x8 mm Unflanged - Stainless Steel 17-4 PH Bearing
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 09, 2026
$145.59 AUD
$145.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d) OD (D) Width (B) Inner Ring Width (Bn) Indicative
ID (d)
10.000
mm
+ 0 / - 0.008
(Equiv. 0.394 in.)
OD (D)
26.000
mm
+ 0 / - 0.009
(Equiv. 1.024 in.)
Width (B)
8.000
mm
+ 0 / - 0.120
(Equiv. 0.315 in.)
Single Row Ball Bearings - 10x26x8 mm - Stainless Steel 17-4 PH
Material: Stainless Steel 17-4 PH    Precision Grade: Semi-Precision    Closure Type: Open    Bearing Type: Radial    Information: Rockwell 85 HRB (Vickers HV170)
Part Number: S174-6000 (Each)
Single Row Ball Bearings - 10x26x8 mm Unflanged - Stainless Steel 17-4 PH Bearing
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 09, 2026
$145.59 AUD
$145.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
