Bearings - Plastic - Acetal - Double Row - Glass Balls

Bearings -> Plastic -> Acetal -> Double Row -> Glass Balls

There is only 1 product in the sub-categories of Bearings - Plastic - Acetal - Double Row - Glass Balls. Browse the Bearings - Plastic - Acetal - Double Row - Glass Balls products table.

Category Details

A selection of Glass Balls Double Row Acetal Plastic Bearings. Bearings for Extreme Corrosion Resistance - Low Speed - Low Load.

  • Plastic bearings, also known as polymer bearings, are bearings made from various types of plastics or polymer materials. Used in a wide range of applications across different industries where traditional metal bearings may not be suitable.
  • These bearings offer unique advantages such as corrosion resistance, low friction, lightweight construction, and non-magnetic properties. Uses include Food and Beverage Industry, Medical and Laboratory Equipment, Chemical Industry,HVAC Systems.
  • Plastic ball bearings do not use the same precision standards as those for precision ball bearings. An expanded range may be available on special order. Please enquire.
  • Races made from Acetal - Balls made from Ground Glass - Cages from Acetal or Nylon.
  • Lubrication - Water Lubrication or can be run dry - Must lubricate over 2500 RPM.
  • Temperature Range - Minus 30 oC to 100 oC Continuous.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Bearings - Plastic - Acetal - Double Row - Glass Balls category on the MBA Minibearings main store.
ID (d) OD (D) Width (B) Flange Diameter Flange Thickness Inner Ring Width (Bn) Indicative

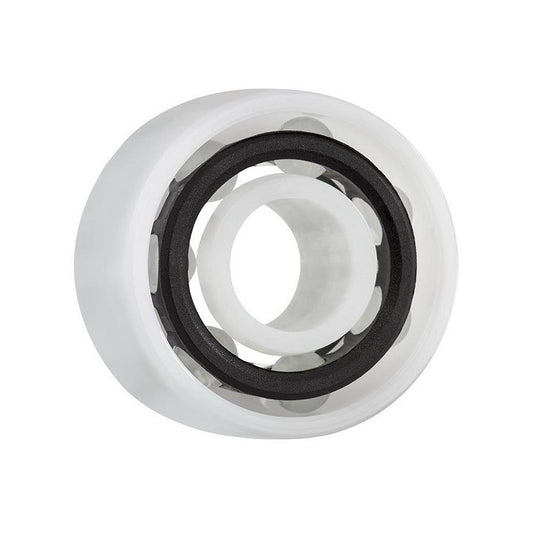

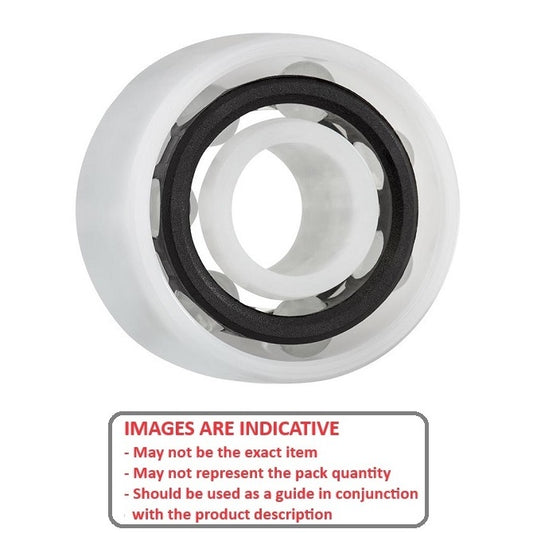

Plastic Bearings - 10x30x14.28 mm - Acetal with Glass Balls Bearing
ID (d)
10.000
mm
+ 0.076 / - 0.000
(Equiv. 0.394 in.)
OD (D)
30.000
mm
+ 0.000 / - 0.102
(Equiv. 1.181 in.)
Width (B)
14.280
mm
+ 0.127 / - 0.000
(Equiv. 0.562 in.)
Plastic Bearings - 10x30x14.28 mm - Acetal with Glass Balls
Material: Acetal with Glass Balls    Max RPM in Air: 913    Notes: Unlubricated    Type: Double Row Radial    Dynamic Load Rating: 32.2    Static Load Rating: 27.7 Kg
Part Number: P-5200-AGL (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 15, 2026
$85.23 AUD
$85.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
