Balls - Inspection

11 Products in this selection

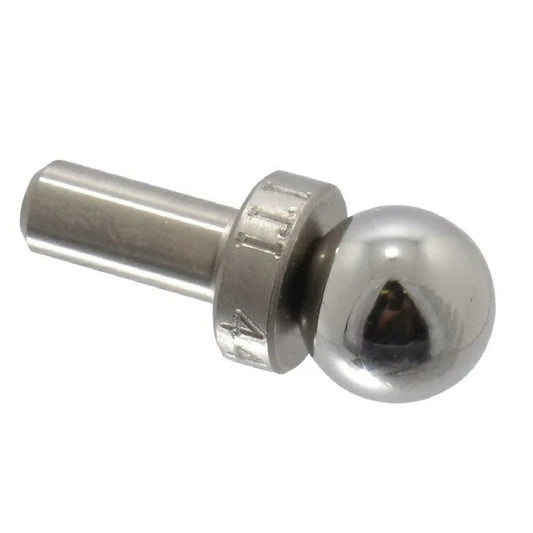

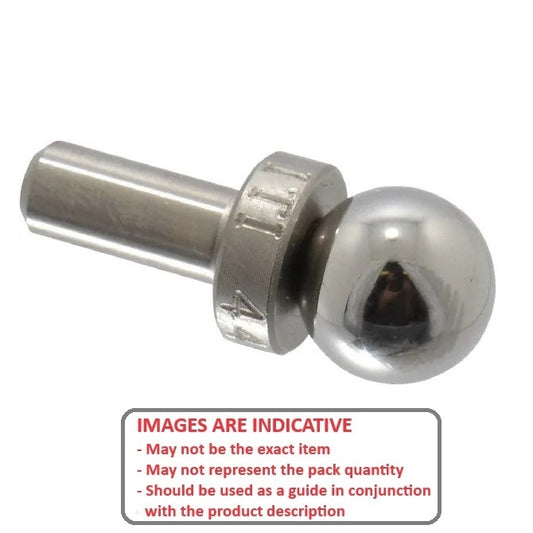

  • Premium short shank inspection balls are used as reference points for inspection applications in conjunction with coordinate measuring machines to accurately measure the workpiece.
  • Made from case hardened 8620 steel
  • Concentricity of ball to shank is 0.00254mm (0.0001 in.) TIR
Additional resources:
Balls Master Catalogue PDF
AFBMA Ball Grades
Diameter (A) Shank Diameter (B) Base to Centre (C) Shoulder to Centre (D) Thread Shoulder Diameter Indicative
6.350
mm
+0.0/-0.0051 		3.167
mm
+0.0/-0.0051 		14.732
mm
+/-0.0051 		5.080
mm 		Solid
 6.350
mm 		1071724 | BIN-00635-HS-SOL (25 Pcs) --- Balls - 6.35 mm x 3.167 mm x 14.732 mm
Material: Carbon Steel
Part Number: BIN-00635-HS-SOL (25 Pcs) Balls - 6.35 mm x 3.167 mm x 14.732 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$6,164.68 AUD
$6,164.68 AUD
Per 25
Diameter (A) Shank Diameter (B) Base to Centre (C) Shoulder to Centre (D) Indicative
6.350
mm
+0.0/-0.0051 		3.167
mm
+0.0/-0.0051 		14.732
mm
+/-0.0051 		5.080
mm 		1071724 | BIN-00635-HS-SOL (25 Pcs) --- Balls - 6.35 mm x 3.167 mm x 14.732 mm
Material: Carbon Steel    Thread: Solid    Shoulder Diameter: 6.350 mm
Part Number: BIN-00635-HS-SOL (25 Pcs) Balls - 6.35 mm x 3.167 mm x 14.732 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$6,164.68 AUD
$6,164.68 AUD
Per 25
9.525
mm
+0.0/-0.0051 		4.755
mm
+0.0/-0.0051 		18.796
mm
+/-0.0051 		7.620
mm 		Solid
 9.525
mm 		1086585 | BIN-00953-HS-SOL (25 Pcs) --- Balls - 9.525 mm x 4.755 mm x 18.796 mm
Material: Carbon Steel
Part Number: BIN-00953-HS-SOL (25 Pcs) Balls - 9.525 mm x 4.755 mm x 18.796 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$4,073.32 AUD
$4,073.32 AUD
Per 25
9.525
mm
+0.0/-0.0051 		4.755
mm
+0.0/-0.0051 		18.796
mm
+/-0.0051 		7.620
mm 		1086585 | BIN-00953-HS-SOL (25 Pcs) --- Balls - 9.525 mm x 4.755 mm x 18.796 mm
Material: Carbon Steel    Thread: Solid    Shoulder Diameter: 9.525 mm
Part Number: BIN-00953-HS-SOL (25 Pcs) Balls - 9.525 mm x 4.755 mm x 18.796 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$4,073.32 AUD
$4,073.32 AUD
Per 25
9.525
mm
+0.0/-0.0051 		7.938
mm
+0.0/-0.0051 		18.796
mm
+/-0.0051 		7.620
mm 		8-32 UNC (4.166mm)
 12.700
mm 		1086664 | BIN-00953-HS --- Balls - 9.525 mm x 7.938 mm x 18.796 mm
Material: Carbon Steel
Part Number: BIN-00953-HS Balls - 9.525 mm x 7.938 mm x 18.796 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$257.05 AUD
$257.05 AUD
Each
9.525
mm
+0.0/-0.0051 		7.938
mm
+0.0/-0.0051 		18.796
mm
+/-0.0051 		7.620
mm 		1086664 | BIN-00953-HS --- Balls - 9.525 mm x 7.938 mm x 18.796 mm
Material: Carbon Steel    Thread: 8-32 UNC (4.166mm)    Shoulder Diameter: 12.700 mm
Part Number: BIN-00953-HS Balls - 9.525 mm x 7.938 mm x 18.796 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$257.05 AUD
$257.05 AUD
Each
12.700
mm
+0.0/-0.0051 		6.342
mm
+0.0/-0.0051 		16.002
mm
+/-0.0051 		7.938
mm 		6-32 UNC (3.500mm)
 12.700
mm 		1102026 | BIN-01270-HS-A (25 Pcs) --- Balls - 12.7 mm x 6.342 mm x 16.002 mm
Material: Carbon Steel
Part Number: BIN-01270-HS-A (25 Pcs) Balls - 12.7 mm x 6.342 mm x 16.002 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$6,360.32 AUD
$6,360.32 AUD
Per 25
12.700
mm
+0.0/-0.0051 		6.342
mm
+0.0/-0.0051 		16.002
mm
+/-0.0051 		7.938
mm 		1102026 | BIN-01270-HS-A (25 Pcs) --- Balls - 12.7 mm x 6.342 mm x 16.002 mm
Material: Carbon Steel    Thread: 6-32 UNC (3.500mm)    Shoulder Diameter: 12.700 mm
Part Number: BIN-01270-HS-A (25 Pcs) Balls - 12.7 mm x 6.342 mm x 16.002 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$6,360.32 AUD
$6,360.32 AUD
Per 25
12.700
mm
+0.0/-0.0051 		6.342
mm
+0.0/-0.0051 		22.352
mm
+/-0.0051 		12.700
mm 		6-32 UNC (3.500mm)
 12.700
mm 		1102027 | BIN-01270-HS-B (25 Pcs) --- Balls - 12.7 mm x 6.342 mm x 22.352 mm
Material: Carbon Steel
Part Number: BIN-01270-HS-B (25 Pcs) Balls - 12.7 mm x 6.342 mm x 22.352 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$6,243.41 AUD
$6,243.41 AUD
Per 25
12.700
mm
+0.0/-0.0051 		6.342
mm
+0.0/-0.0051 		22.352
mm
+/-0.0051 		12.700
mm 		1102027 | BIN-01270-HS-B (25 Pcs) --- Balls - 12.7 mm x 6.342 mm x 22.352 mm
Material: Carbon Steel    Thread: 6-32 UNC (3.500mm)    Shoulder Diameter: 12.700 mm
Part Number: BIN-01270-HS-B (25 Pcs) Balls - 12.7 mm x 6.342 mm x 22.352 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$6,243.41 AUD
$6,243.41 AUD
Per 25
12.700
mm
+0.0/-0.0051 		6.342
mm
+0.0/-0.0051 		23.622
mm
+/-0.0051 		10.160
mm 		6-32 UNC (3.500mm)
 12.700
mm 		1102028 | BIN-01270-HS-C (25 Pcs) --- Balls - 12.7 mm x 6.342 mm x 23.622 mm
Material: Carbon Steel
Part Number: BIN-01270-HS-C (25 Pcs) Balls - 12.7 mm x 6.342 mm x 23.622 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$4,481.77 AUD
$4,481.77 AUD
Per 25
12.700
mm
+0.0/-0.0051 		6.342
mm
+0.0/-0.0051 		23.622
mm
+/-0.0051 		10.160
mm 		1102028 | BIN-01270-HS-C (25 Pcs) --- Balls - 12.7 mm x 6.342 mm x 23.622 mm
Material: Carbon Steel    Thread: 6-32 UNC (3.500mm)    Shoulder Diameter: 12.700 mm
Part Number: BIN-01270-HS-C (25 Pcs) Balls - 12.7 mm x 6.342 mm x 23.622 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$4,481.77 AUD
$4,481.77 AUD
Per 25
12.700
mm
+0.0/-0.0051 		9.525
mm
+0.0/-0.0051 		33.274
mm
+/-0.0051 		9.525
mm 		10-24 UNC (4.762mm)
 15.875
mm 		1102246 | BIN-01270-HS-D (25 Pcs) --- Balls - 12.7 mm x 9.525 mm x 33.274 mm
Material: Carbon Steel
Part Number: BIN-01270-HS-D (25 Pcs) Balls - 12.7 mm x 9.525 mm x 33.274 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$6,259.05 AUD
$6,259.05 AUD
Per 25
12.700
mm
+0.0/-0.0051 		9.525
mm
+0.0/-0.0051 		33.274
mm
+/-0.0051 		9.525
mm 		1102246 | BIN-01270-HS-D (25 Pcs) --- Balls - 12.7 mm x 9.525 mm x 33.274 mm
Material: Carbon Steel    Thread: 10-24 UNC (4.762mm)    Shoulder Diameter: 15.875 mm
Part Number: BIN-01270-HS-D (25 Pcs) Balls - 12.7 mm x 9.525 mm x 33.274 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$6,259.05 AUD
$6,259.05 AUD
Per 25
15.875
mm
+0.0/-0.0051 		7.930
mm
+0.0/-0.0051 		27.432
mm
+/-0.0051 		11.430
mm 		8-32 UNC (4.166mm)
 15.875
mm 		1111196 | BIN-01588-HS-A (25 Pcs) --- Balls - 15.875 mm x 7.93 mm x 27.432 mm
Material: Carbon Steel
Part Number: BIN-01588-HS-A (25 Pcs) Balls - 15.875 mm x 7.93 mm x 27.432 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$6,582.95 AUD
$6,582.95 AUD
Per 25
15.875
mm
+0.0/-0.0051 		7.930
mm
+0.0/-0.0051 		27.432
mm
+/-0.0051 		11.430
mm 		1111196 | BIN-01588-HS-A (25 Pcs) --- Balls - 15.875 mm x 7.93 mm x 27.432 mm
Material: Carbon Steel    Thread: 8-32 UNC (4.166mm)    Shoulder Diameter: 15.875 mm
Part Number: BIN-01588-HS-A (25 Pcs) Balls - 15.875 mm x 7.93 mm x 27.432 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$6,582.95 AUD
$6,582.95 AUD
Per 25
15.875
mm
+0.0/-0.0051 		9.525
mm
+0.0/-0.0051 		36.068
mm
+/-0.0051 		11.430
mm 		10-24 UNC (4.762mm)
 15.875
mm 		1111256 | BIN-01588-HS-B (25 Pcs) --- Balls - 15.875 mm x 9.525 mm x 36.068 mm
Material: Carbon Steel
Part Number: BIN-01588-HS-B (25 Pcs) Balls - 15.875 mm x 9.525 mm x 36.068 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$4,691.77 AUD
$4,691.77 AUD
Per 25
15.875
mm
+0.0/-0.0051 		9.525
mm
+0.0/-0.0051 		36.068
mm
+/-0.0051 		11.430
mm 		1111256 | BIN-01588-HS-B (25 Pcs) --- Balls - 15.875 mm x 9.525 mm x 36.068 mm
Material: Carbon Steel    Thread: 10-24 UNC (4.762mm)    Shoulder Diameter: 15.875 mm
Part Number: BIN-01588-HS-B (25 Pcs) Balls - 15.875 mm x 9.525 mm x 36.068 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$4,691.77 AUD
$4,691.77 AUD
Per 25
19.050
mm
+0.0/-0.0051 		9.525
mm
+0.0/-0.0051 		38.862
mm
+/-0.0051 		14.288
mm 		10-24 UNC (4.762mm)
 19.050
mm 		1120647 | BIN-01905-HS (25 Pcs) --- Balls - 19.05 mm x 9.525 mm x 38.862 mm
Material: Carbon Steel
Part Number: BIN-01905-HS (25 Pcs) Balls - 19.05 mm x 9.525 mm x 38.862 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$7,369.68 AUD
$7,369.68 AUD
Per 25
19.050
mm
+0.0/-0.0051 		9.525
mm
+0.0/-0.0051 		38.862
mm
+/-0.0051 		14.288
mm 		1120647 | BIN-01905-HS (25 Pcs) --- Balls - 19.05 mm x 9.525 mm x 38.862 mm
Material: Carbon Steel    Thread: 10-24 UNC (4.762mm)    Shoulder Diameter: 19.050 mm
Part Number: BIN-01905-HS (25 Pcs) Balls - 19.05 mm x 9.525 mm x 38.862 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$7,369.68 AUD
$7,369.68 AUD
Per 25
25.400
mm
+0.0/-0.0051 		12.700
mm
+0.0/-0.0051 		41.656
mm
+/-0.0051 		17.780
mm 		10-24 UNC (4.762mm)
 25.400
mm 		1135101 | BIN-02540-HS --- Balls - 25.4 mm x 12.7 mm x 41.656 mm
Material: Carbon Steel
Part Number: BIN-02540-HS Balls - 25.4 mm x 12.7 mm x 41.656 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$281.50 AUD
$281.50 AUD
Each
25.400
mm
+0.0/-0.0051 		12.700
mm
+0.0/-0.0051 		41.656
mm
+/-0.0051 		17.780
mm 		1135101 | BIN-02540-HS --- Balls - 25.4 mm x 12.7 mm x 41.656 mm
Material: Carbon Steel    Thread: 10-24 UNC (4.762mm)    Shoulder Diameter: 25.400 mm
Part Number: BIN-02540-HS Balls - 25.4 mm x 12.7 mm x 41.656 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$281.50 AUD
$281.50 AUD
Each
