Balls - Glass - Fused Silica - Clear

Balls -> Glass -> Fused Silica -> Clear

There is only 1 product in the sub-categories of Balls - Glass - Fused Silica - Clear. Browse the Balls - Glass - Fused Silica - Clear products table.

Category Details

A selection of Clear Fused Silica Glass Balls. Low index of refraction, supporting high temperatures. SIO2 synthetic quartz.

  • Glass balls are versatile components that find various engineering uses across different industries.
  • Some common uses include valves, gauges, spray nozzles, balls in low impact type ball bearings made from plastics, aerospace applications, temperature sensing, and decorative applications.
  • Max working temperature 950 C.
  • Excellent electrical insulator
  • Tensile strength 500 kg / sq.cm, compressive strength 11300 kg / sq.cm.
  • Good chemical resistance
  • Flexural strength 680 kg / sq.cm.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Balls - Glass - Fused Silica - Clear category on the MBA Minibearings main store.
Diameter (D) Material Precision Hardness Properties Colour Indicative

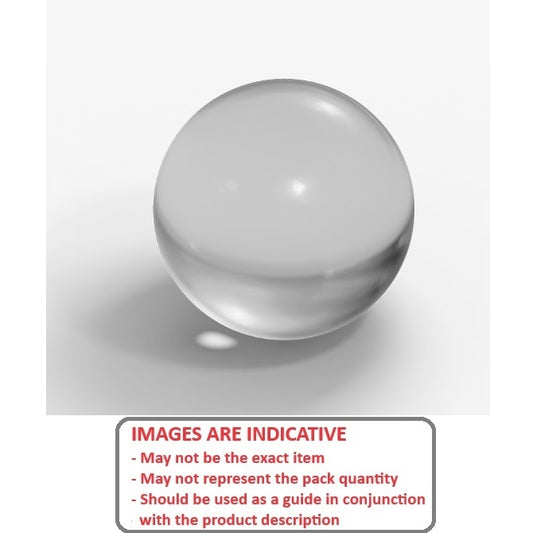

Glass Balls - 3 mm Fused Silica - AFBMA Grade 25 Ball
Diameter (D)
3.000
mm
+/- 0.00254
(Equiv. 0.118 in.)
Material
Fused Silica

Precision
AFBMA Grade 25

Hardness
500 kg / sq.cm
Colour
Translucent
Glass Balls - 3 mm Fused Silica - AFBMA Grade 25 Ball
Material: Fused Silica    Specific Gravity: 2.203    Ovality: +/-0.000635
Part Number: BL-00300-FS-G25 (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$16.14 AUD
$26.84 AUD $16.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Diameter (D) Material Precision Hardness Indicative
Glass Balls - 3 mm Fused Silica - AFBMA Grade 25 Ball
Diameter (D)
3.000
mm
+/- 0.00254
(Equiv. 0.118 in.)
Material
Fused Silica

Precision
AFBMA Grade 25

Hardness
500 kg / sq.cm
Glass Balls - 3 mm Fused Silica - AFBMA Grade 25 Ball
Material: Fused Silica    Colour: Translucent    Specific Gravity: 2.203    Ovality: +/-0.000635
Part Number: BL-00300-FS-G25 (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$16.14 AUD
$26.84 AUD $16.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
