Collection: Balls - Fixture
Balls -> FixtureThere are 2 products in the sub-categories of Balls - Fixture. Browse the Balls - Fixture products table. To narrow down the selection, please choose a sub-category from the links below.
Balls - Fixture - Stainless Steel
A selection of Stainless Steel Fixture Balls. 440C Hardened to RC 55-58....
Balls - Fixture - Tungsten Carbide
A selection of Tungsten Carbide Fixture Balls. Tungsten Carbide RC 65-68 Fixture...
Category Details
This category includes various types of fixture balls.
- Fixture balls are precision components used in fixture design, tooling, and workholding applications.
- Fixture balls, also known as locating balls or tooling balls, serve as reference points or contact points in fixtures and jigs to facilitate accurate positioning, alignment, and repeatability during machining, assembly, and inspection processes.
- These balls are often mounted on fixtures, jigs, or workholding systems using various mounting methods, such as threaded, press-fit, or magnetic mounting.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Balls - Fixture category on the MBA Minibearings main store.
| Diameter (A) | Shank Diameter (C) | Base to Centre (B) |
Indicative Image |
|---|---|---|---|
| Fixture Balls - 6.35x3.167x14.224 mm - Stainless Steel Ball | |||
|
Diameter (A)
6.350
mm +/- 0.0025
(Equiv. 0.25 in.) |
Shank Diameter (C)
3.167
mm + 0 / - 0.0051 (Equiv. 0.125 in.) |
Base to Centre (B)
14.224
mm +/- 0.127 (Equiv. 0.56 in.) |
|
|
Material: Stainless Steel
Category: Balls - Fixture - Stainless Steel |
|||
|
Part Number: BFX-00635-S440 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$241.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||
| Diameter (A) | Shank Diameter (C) | Base to Centre (B) |
Indicative Image |
| Fixture Balls - 6.35x3.167x14.224 mm - Stainless Steel Ball | |||
|
Diameter (A)
6.350
mm +/- 0.0025 (Equiv. 0.25 in.) |
Shank Diameter (C)
3.167
mm + 0 / - 0.0051 (Equiv. 0.125 in.) |
Base to Centre (B)
14.224
mm +/- 0.127 (Equiv. 0.56 in.) |
|
|
Material: Stainless Steel
Category: Balls - Fixture - Stainless Steel |
|||
|
Part Number: BFX-00635-S440 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$241.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||
|
|||

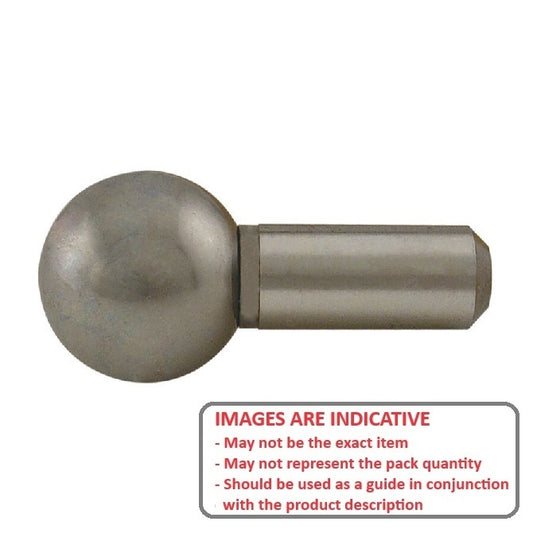

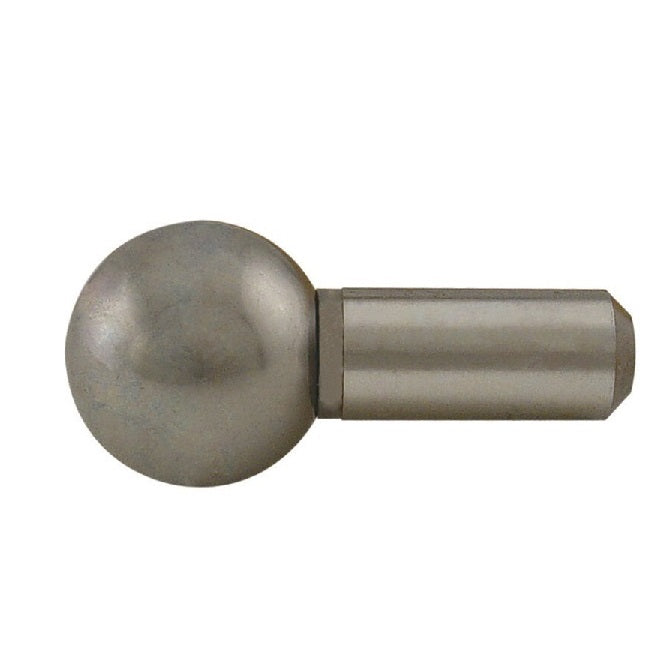

| Fixture Balls - 6.35x3.167x14.224 mm - Tungsten Carbide Ball | |||
|
Diameter (A)
6.350
mm +/- 0.0013
(Equiv. 0.25 in.) |
Shank Diameter (C)
3.167
mm +/- 0.1270 (Equiv. 0.125 in.) |
Base to Centre (B)
14.224
mm +/- 0.0076 (Equiv. 0.56 in.) |
|
|
Material: Tungsten Carbide
Category: Balls - Fixture - Tungsten Carbide |
|||
|
Part Number: BFX-00635-TC (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$212.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||
| Fixture Balls - 6.35x3.167x14.224 mm - Tungsten Carbide Ball | |||
|
Diameter (A)
6.350
mm +/- 0.0013 (Equiv. 0.25 in.) |
Shank Diameter (C)
3.167
mm +/- 0.1270 (Equiv. 0.125 in.) |
Base to Centre (B)
14.224
mm +/- 0.0076 (Equiv. 0.56 in.) |
|
|
Material: Tungsten Carbide
Category: Balls - Fixture - Tungsten Carbide |
|||
|
Part Number: BFX-00635-TC (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$212.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
|||
|
|||
