Balls - Ceramic - Zirconia

Balls -> Ceramic -> Zirconia

There are 6 products in the sub-categories of Balls - Ceramic - Zirconia. Browse the Balls - Ceramic - Zirconia products table.

Category Details

A selection of Zirconia Ceramic Balls. Outstanding wear resistance. Excellent thermal and chemical resistance.

  • Grades shown are AFBMA and ISO3290-1 which relates primarily to the ovality of the ball rather than the diametrical tolerance
  • General balls offered for sale may be from different ball lots, so the diametrical tolerance shown, indicates a variance that might be encountered if balls of different gauges are mixed, unless a ball gauge is specified for the part.
  • For diametrically critical applications, a special quote can be obtained for balls of a specified ball gauge.
  • Grades shown are AFBMA and ISO3290-1.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Balls - Ceramic - Zirconia category on the MBA Minibearings main store.
Diameter (D) Material Precision Hardness Properties Colour Indicative
Ceramic Balls - 2 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Diameter (D)
2.000
mm
+/- 0.00254
(Equiv. 0.079 in.)
Material
ZRO2
Precision
AFBMA Grade 25
Hardness
1300 kg/mm.sq
Properties
Good wear resistance and thermal resistance
Colour
Off White
Ceramic Balls - 2 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Material: ZRO2    Specific Gravity: 6.02    Ovality: +/-0.000635
Part Number: BL-00200-ZR-G25 (Pack of 20)
59 units (1180 pcs) Available Now | Further orders can be expected around Wed, Sep 02, 2026
$7.77 AUD
$7.77 AUD
Priced, Stocked and Sold Per pack of 20
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 59 available can be backordered.
Diameter (D) Material Precision Hardness Indicative
Ceramic Balls - 2 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Diameter (D)
2.000
mm
+/- 0.00254
(Equiv. 0.079 in.)
Material
ZRO2
Precision
AFBMA Grade 25
Hardness
1300 kg/mm.sq
Ceramic Balls - 2 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Material: ZRO2    Properties: Good wear resistance and thermal resistance    Colour: Off White    Specific Gravity: 6.02    Ovality: +/-0.000635
Part Number: BL-00200-ZR-G25 (Pack of 20)
59 units (1180 pcs) Available Now | Further orders can be expected around Wed, Sep 02, 2026
$7.77 AUD
$7.77 AUD
Priced, Stocked and Sold Per pack of 20
Excludes GST and overseas Taxes & Duties
Quantity Required

59 units (1180 pcs) Available Now. Backorder if more than 59.

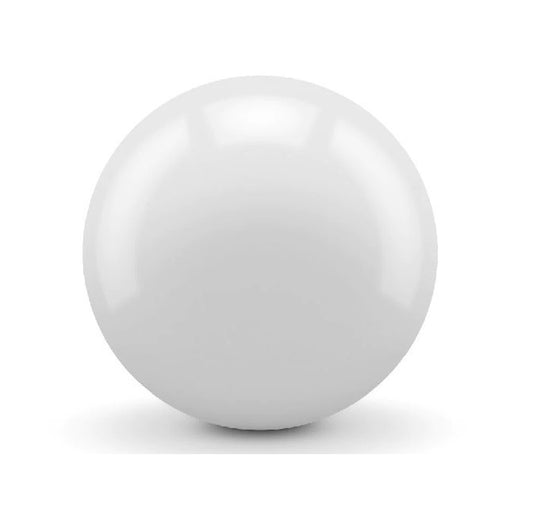

Ceramic Balls - 3 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Diameter (D)
3.000
mm
+/- 0.00254
(Equiv. 0.118 in.)
Material
ZRO2
Precision
AFBMA Grade 25
Hardness
1300 kg/mm.sq
Properties
Good wear resistance and thermal resistance
Colour
Off White
Ceramic Balls - 3 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Material: ZRO2    Specific Gravity: 6.02    Ovality: +/-0.000635
Part Number: BL-00300-ZR-G25 (Pack of 20)
4 units (80 pcs) Available Now | Further orders can be expected around Wed, Sep 02, 2026
$8.95 AUD
$8.95 AUD
Priced, Stocked and Sold Per pack of 20
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Ceramic Balls - 3 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Diameter (D)
3.000
mm
+/- 0.00254
(Equiv. 0.118 in.)
Material
ZRO2
Precision
AFBMA Grade 25
Hardness
1300 kg/mm.sq
Ceramic Balls - 3 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Material: ZRO2    Properties: Good wear resistance and thermal resistance    Colour: Off White    Specific Gravity: 6.02    Ovality: +/-0.000635
Part Number: BL-00300-ZR-G25 (Pack of 20)
4 units (80 pcs) Available Now | Further orders can be expected around Wed, Sep 02, 2026
$8.95 AUD
$8.95 AUD
Priced, Stocked and Sold Per pack of 20
Excludes GST and overseas Taxes & Duties
Quantity Required

4 units (80 pcs) Available Now. Backorder if more than 4.
Ceramic Balls - 4 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Diameter (D)
4.000
mm
+/- 0.00254
(Equiv. 0.157 in.)
Material
ZRO2
Precision
AFBMA Grade 25
Hardness
1300 kg/mm.sq
Properties
Good wear resistance and thermal resistance
Colour
Off White
Ceramic Balls - 4 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Material: ZRO2    Specific Gravity: 6.02    Ovality: +/-0.000635
Part Number: BL-00400-ZR-G25 (Pack of 10)
7 units (70 pcs) Available Now | Further orders can be expected around Wed, Sep 02, 2026
$7.23 AUD
$7.23 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 7 available can be backordered.
Ceramic Balls - 4 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Diameter (D)
4.000
mm
+/- 0.00254
(Equiv. 0.157 in.)
Material
ZRO2
Precision
AFBMA Grade 25
Hardness
1300 kg/mm.sq
Ceramic Balls - 4 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Material: ZRO2    Properties: Good wear resistance and thermal resistance    Colour: Off White    Specific Gravity: 6.02    Ovality: +/-0.000635
Part Number: BL-00400-ZR-G25 (Pack of 10)
7 units (70 pcs) Available Now | Further orders can be expected around Wed, Sep 02, 2026
$7.23 AUD
$7.23 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
Quantity Required

7 units (70 pcs) Available Now. Backorder if more than 7.
Ceramic Balls - 5 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Diameter (D)
5.000
mm
+/- 0.00254
(Equiv. 0.197 in.)
Material
ZRO2
Precision
AFBMA Grade 25
Hardness
1300 kg/mm.sq
Properties
Good wear resistance and thermal resistance
Colour
Off White
Ceramic Balls - 5 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Material: ZRO2    Specific Gravity: 6.02    Ovality: +/-0.000635
Part Number: BL-00500-ZR-G25 (Pack of 5)
40 units (200 pcs) Available Now | Further orders can be expected around Wed, Sep 02, 2026
$8.14 AUD
$8.14 AUD
Priced, Stocked and Sold Per pack of 5
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 40 available can be backordered.
Ceramic Balls - 5 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Diameter (D)
5.000
mm
+/- 0.00254
(Equiv. 0.197 in.)
Material
ZRO2
Precision
AFBMA Grade 25
Hardness
1300 kg/mm.sq
Ceramic Balls - 5 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Material: ZRO2    Properties: Good wear resistance and thermal resistance    Colour: Off White    Specific Gravity: 6.02    Ovality: +/-0.000635
Part Number: BL-00500-ZR-G25 (Pack of 5)
40 units (200 pcs) Available Now | Further orders can be expected around Wed, Sep 02, 2026
$8.14 AUD
$8.14 AUD
Priced, Stocked and Sold Per pack of 5
Excludes GST and overseas Taxes & Duties
Quantity Required

40 units (200 pcs) Available Now. Backorder if more than 40.
Ceramic Balls - 6.35 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Diameter (D)
6.350
mm
+/- 0.00254
(Equiv. 0.25 in.)
Material
ZRO2
Precision
AFBMA Grade 25
Hardness
1300 kg/mm.sq
Properties
Good wear resistance and thermal resistance
Colour
Off White
Ceramic Balls - 6.35 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Material: ZRO2    Specific Gravity: 6.02    Ovality: +/-0.000635
Part Number: BL-00635-ZR-G25 (Each)
314 Available Now | Further orders can be expected around Wed, Sep 02, 2026
$5.41 AUD
$5.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 314 available can be backordered.
Ceramic Balls - 6.35 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Diameter (D)
6.350
mm
+/- 0.00254
(Equiv. 0.25 in.)
Material
ZRO2
Precision
AFBMA Grade 25
Hardness
1300 kg/mm.sq
Ceramic Balls - 6.35 mm ZRO2 - AFBMA Grade 25 Zirconia Ball
Material: ZRO2    Properties: Good wear resistance and thermal resistance    Colour: Off White    Specific Gravity: 6.02    Ovality: +/-0.000635
Part Number: BL-00635-ZR-G25 (Each)
314 Available Now | Further orders can be expected around Wed, Sep 02, 2026
$5.41 AUD
$5.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

314 Available Now. Backorder if more than 314.
Ceramic Balls - 12.7 mm ZRO2 - ISO 3290 Grade 60 Zirconia Ball
Diameter (D)
12.700
mm
+/- 0.007620
(Equiv. 0.5 in.)
Material
ZRO2
Precision
ISO 3290 Grade 60
Hardness
1300 kg/mm.sq
Properties
Good wear resistance and thermal resistance
Colour
Off White
Ceramic Balls - 12.7 mm ZRO2 - ISO 3290 Grade 60 Zirconia Ball
Material: ZRO2    Specific Gravity: 6.02    Ovality: +/-0.00150
Part Number: BL-01270-ZR-G60 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Sep 02, 2026
$38.86 AUD
$38.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ceramic Balls - 12.7 mm ZRO2 - ISO 3290 Grade 60 Zirconia Ball
Diameter (D)
12.700
mm
+/- 0.007620
(Equiv. 0.5 in.)
Material
ZRO2
Precision
ISO 3290 Grade 60
Hardness
1300 kg/mm.sq
Ceramic Balls - 12.7 mm ZRO2 - ISO 3290 Grade 60 Zirconia Ball
Material: ZRO2    Properties: Good wear resistance and thermal resistance    Colour: Off White    Specific Gravity: 6.02    Ovality: +/-0.00150
Part Number: BL-01270-ZR-G60 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Sep 02, 2026
$38.86 AUD
$38.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
