Ball Transfer Units - Screw Stem - Stainless - Precision

1 Item Available

A selection of Precision Stainless Screw Stem Ball Transfer Units. This is the main category in this series

  • Single ball bearing units for conveyor systems
  • Applications include measuring equipment and light weight coil handlers. Guides for small linear motion (eg. photocopier slides). Transfer of material in clean rooms.
  • Max Load is applicable when used as a transfer, not as a castor
Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Ball Transfer Units - Screw Stem - Stainless - Precision.
Max Load Height from Base (B) Body Diameter (D) Overall Height (L) Ball Diameter Indicative
Max Load
20
kg
Height from Base (B)
9
mm
Body Diameter (D)
13
mm
Overall Height (L)
24.0
mm
Ball Diameter
4.8
mm

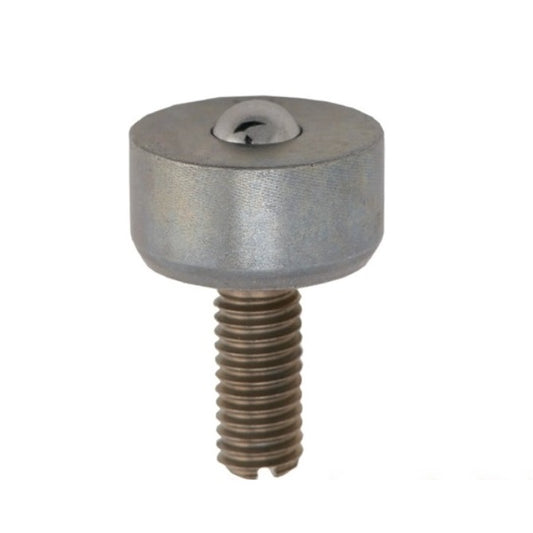

Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Body Height (Bh): 9.0 mm    Thread: M6    Stud Length (Sl): 15.0 mm
Part Number: BTU0020-009-TS-SS (Each) Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Stainless Steel AISI 440C
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
Max Load Height from Base (B) Body Diameter (D) Overall Height (L) Indicative
Max Load
20
kg
Height from Base (B)
9
mm
Body Diameter (D)
13
mm
Overall Height (L)
24.0
mm

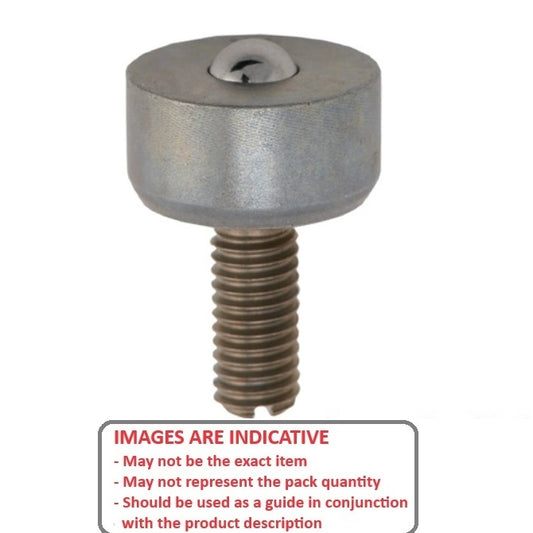

Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Ball Diameter: 4.8 mm    Body Height (Bh): 9.0 mm    Thread: M6    Stud Length (Sl): 15.0 mm
Part Number: BTU0020-009-TS-SS (Each) Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Stainless Steel AISI 440C
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
