W0120-T-018-025-W3-C-ECO - Datasheet

MBA

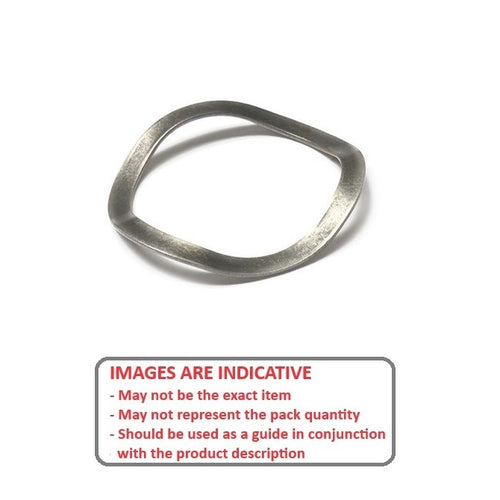

Category Information

Washers - Spring - Wave - Carbon Steel

Carbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.

  • Spring washers are available in many different materials and types, including curved and waved series.
  • They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
  • An expanded range may be available on special order. Please enquire.
  • This category includes EPL type bearing pre-load washers.

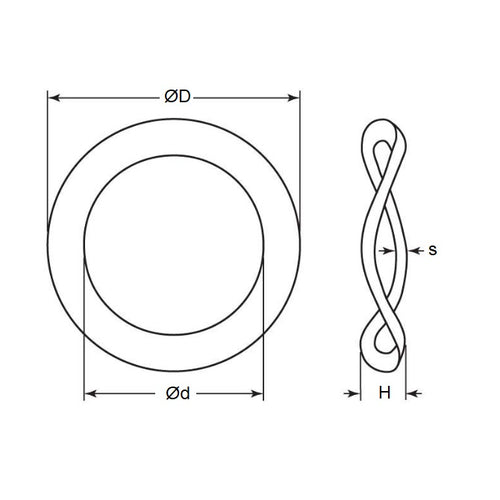

Product Data

  • Nominal Inside Diameter (d) : 12.00 mm + 0.1 / + 0.7
    (Equiv. 0.472 in.)
  • Nominal Outside Diameter (D) 18.00 mm - 0.1 / - 1.0
    (Equiv. 0.709 in.)
  • Nom. Height (H) 2.50 mm
    (Equiv. 0.098 in.)
  • Thickness (s) 0.30 mm
  • Type 3 Wave
  • Nominal Screw Size M12
  • Material Carbon Spring Steel Self Finish
Country of Origin: TW
