PLST-050M-180-C-LK-020 - Datasheet
MBA
Category Information

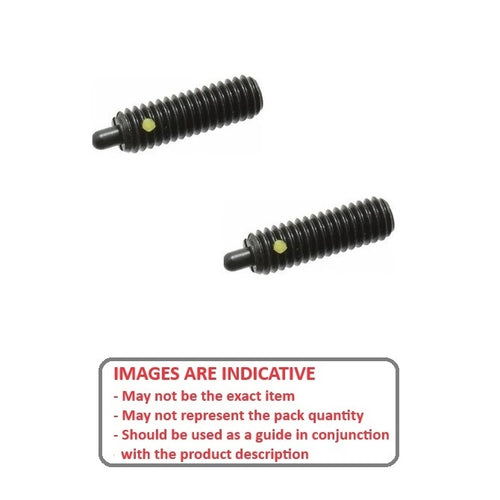

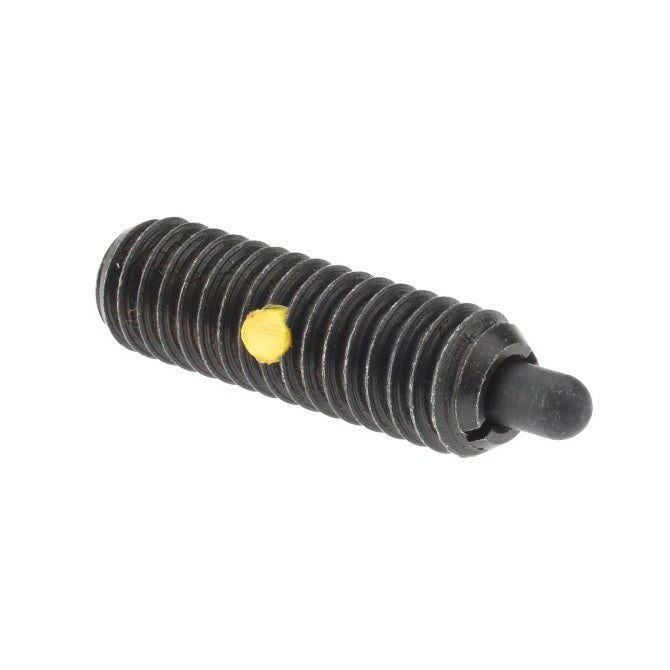

Plungers - Spring - No Handle - Steel - ThreadlockThreadlock Steel No Handle Spring Plungers. With Long-Lok thread locking compound to prevent loosening
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

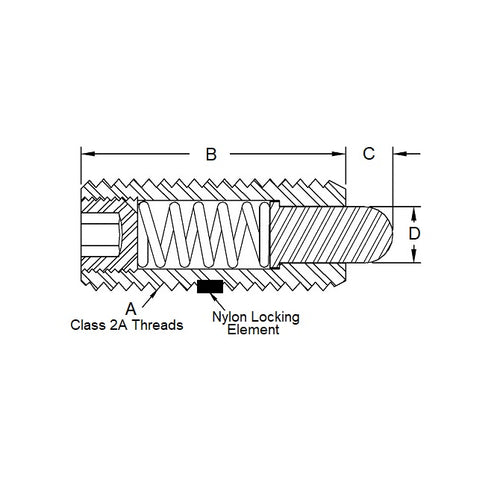

- Thread Size (D) : M5 (5x0.8mm)
- Thread Length (B) 18.0 mm
- Initial Pressure (F1) 6.0 N
- Final Pressure (F2) 20.0 N
- Tip Diameter (D1) 2.4 mm
- Tip Length (C) 2.3 mm
- Body Length (L) 18.0 mm
- Drive 1.5mm Hex
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- PLST050180CLK020
