PLST-040M-150-C-016 - Datasheet
MBA
Category Information

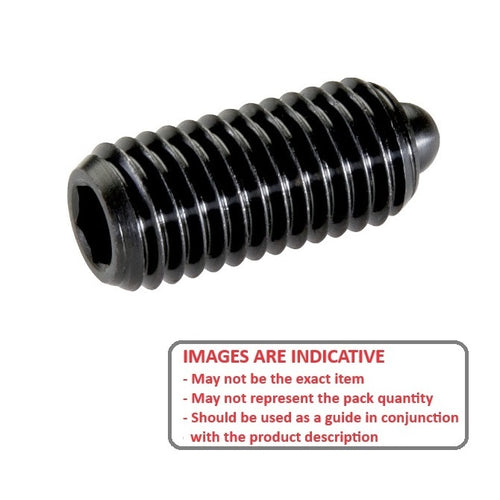

Plungers - Spring - No Handle - Steel - Standard NoseStandard Nose Steel No Handle Spring Plungers.
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

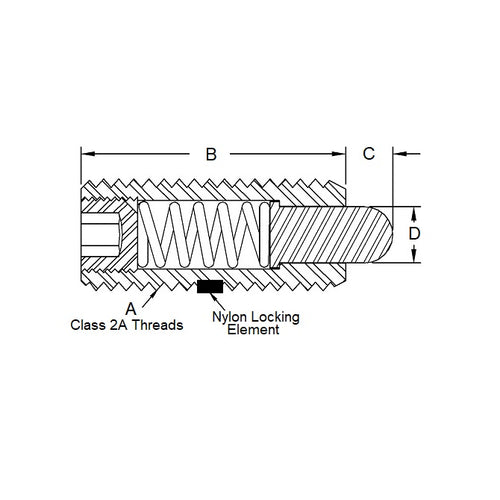

- Thread Size (A) : M4 (4x0.7mm)
- Thread Length (B) 15.0 mm
- Initial Pressure (F1) 5.0 N
- Final Pressure (F2) 16.0 N
- Tip Diameter (D) 1.5 mm
- Tip Length 1.5 mm
- Body Length (B) 15.0 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- PLST040150C016
