PLBT-200M-300-S3-148 - Datasheet
MBA
Category Information

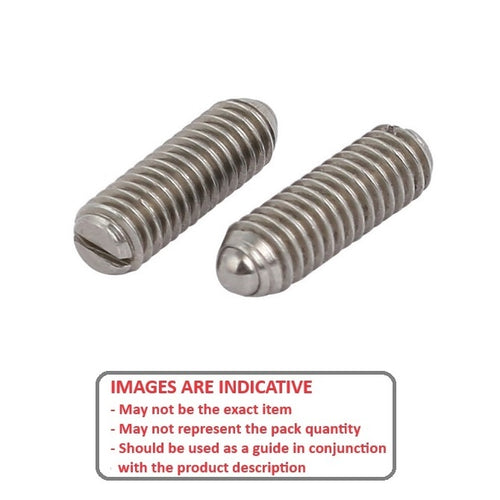

Plungers - Ball Threaded - Stainless Body - Stainless BallStainless Ball Stainless Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
- Spring-loaded mechanical component with a threaded body, used for locating, securing, or applying pressure.
- When pressure is applied to the ball, it compresses the internal spring and can be temporarily pushed into the body, allowing parts to be moved, and then it springs back to its original position to hold them in place.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

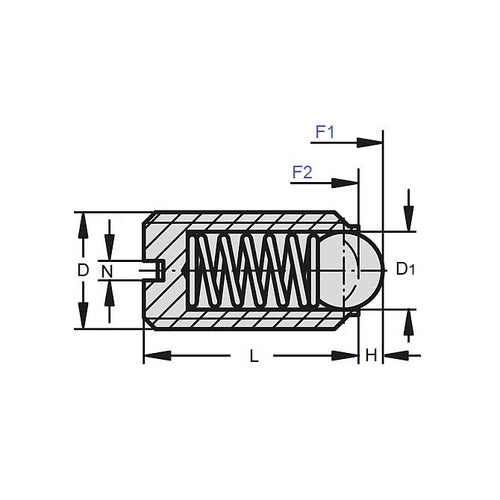

- Thread Size (D) : M20 (20x2.5mm)
- Body Length (L)
30.0
mm
(Equiv. 1.181 in.) - Initial Pressure (F1) 78.4 N
- Final Pressure (F2) 147.6 N
- Ball Diameter (D1) 11.9 mm
- Ball Height (H) 4.5 mm
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Elesa GN615-M20-KN
- BPM20SS
- PLBT200300S3160
- GN615M20KN
