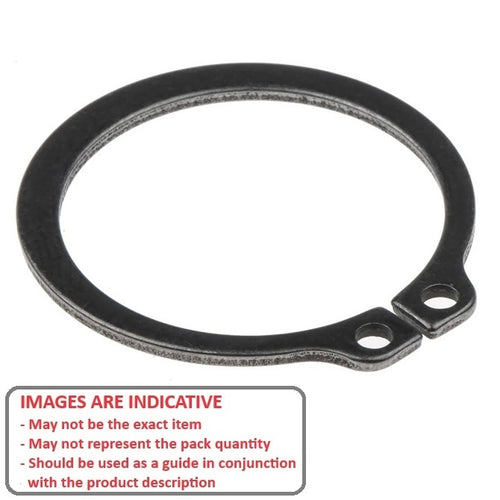

CCE-08000-C - Datasheet
MBA
Category Information
Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds) : 80.00 mm
- Clip Thickness (T)
2.50
mm
+ 0.00 / - 0.07
(Equiv. 0.098 in.) - Groove Dia. (Dg)
76.50
mm
+ 0.00 / - 0.30
(Equiv. 3.012 in.) - Approx. Loose Circlip ID (A) 74.50 mm
- Groove Width (W) 2.65 mm
- Clearance on Shaft (C1) 93.70 mm
- Clearance in Groove (C1) 98.10 mm
- Min. Lug Diameter (h) 3.00 mm
- Min. Extension (n) 5.30
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-080
- 98541A189
- Seeger® A-080
- Seeger® A80
- Seeger® A80-ARS
- Seeger® A80X2.5
- Bossard® BN818-080
- Waldes® D1400-080
- Huyett® DSH-080
- NoCor® DSH-080
- Rotor Clip® DSH-080
- Seeger® NZT.A80
- BN818080
- A080
- D1400080
- D14000800
- D1400-0800
- 471080
- DSH080
- A80ARS
