Y1588-SLD-C - Datasheet
MBA
Category Information

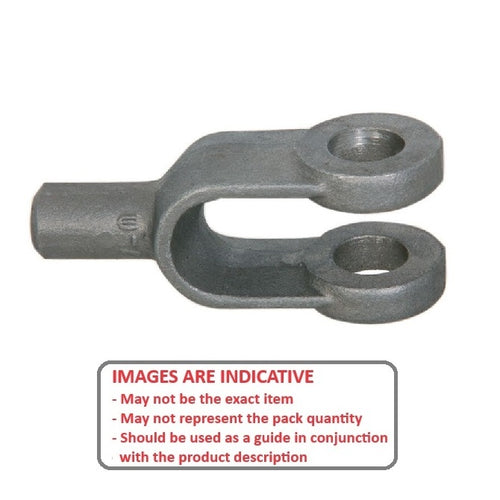

Yoke Ends - BlankBlank Yoke Ends. Linkage connectors with blank ends - no hole.
- A yoke end, also known as a clevis end, is a U-shaped metal fastener used to connect rods, cables, or pipes to a mounting point.
- It's commonly used in lifting, rigging, and other applications where secure attachment and articulation are needed.
- Yoke ends require a clevis pin and cotter pin for secure attachment.
- Drop forged steel machined to SAE standards
- Also see clevis joints
Product Data

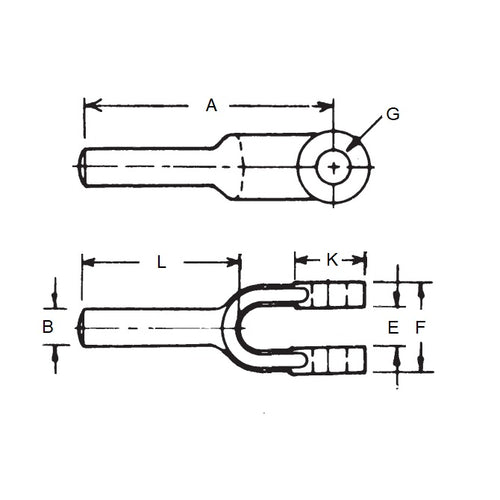

- Effective Length (A) : 73.030 mm
- Body Diameter (B) 15.880 mm
- Gap (E) +/- 0.38 17.460 mm
- Width (F) +/- 0.38 34.93 mm
- Hole Size (G) +0.25 15.88 mm
- Stud Height (L) 29 mm
- Housing Diameter (K) 30 mm
- Material Carbon Steel
