RCL-062-102-S4 - Datasheet
MBA
Category Information

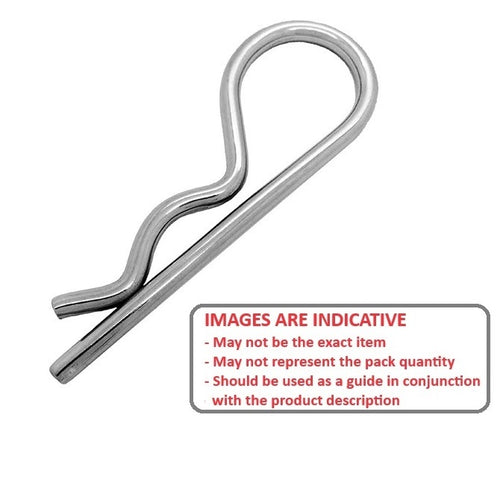

R Clips - Single Coil - Stainless SteelStainless Steel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.

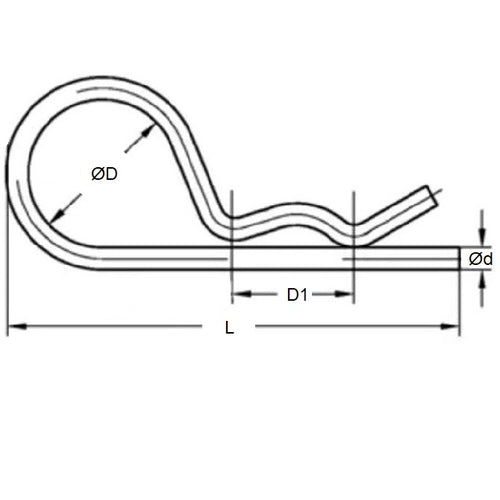

Product Data
- Wire Thickness (d) : 6.20 mm
- Length (L) 102.0 mm
- Material 304 Stainless Steel
- Drill Hole Size 6.75 mm
- Approx.Inside Eye (D) 22.00 to 26.00 mm
- Shaft Size Range 19.05 to 25.40 mm
- Approx. Bridge Length (D1) 43 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- Huyett® BPS-219
