RCL-060-108-S4 - Datasheet
Brighton Best
Category Information

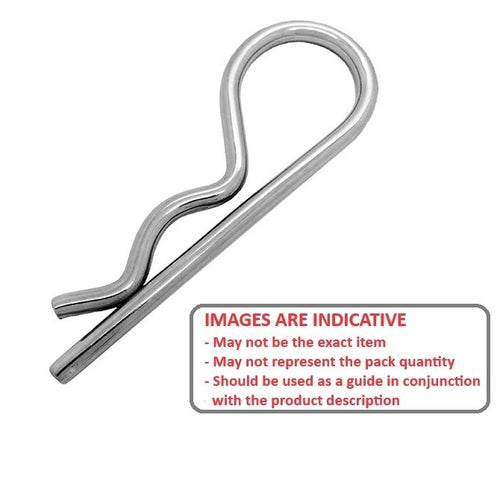

R Clips - Single Coil - Stainless SteelStainless Steel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
Product Data

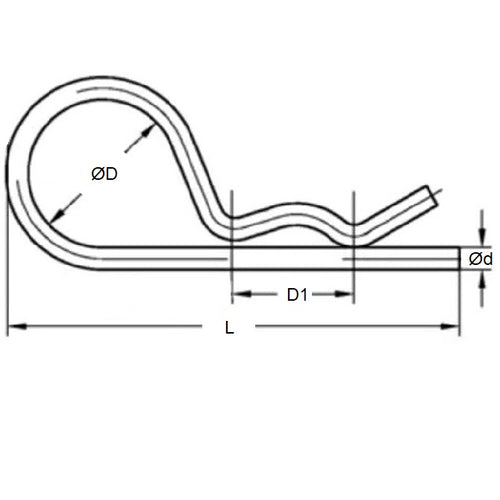

- Wire Thickness (d) : 6.00 mm
- Length (L) 108.3 mm
- Material 304 Stainless Steel
- Drill Hole Size 7.00 mm
- Approx.Inside Eye (D) 28.00 to 32.00 mm
- Shaft Size Range 28.00 to 40.00 mm
- Approx. Bridge Length (D1) 40 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® W22060
