T-0050-0100-G - Datasheet
MBA
Category Information
Bearings - Thrust Ball - Grooved - Chrome SteelChrome Steel Grooved Thrust Ball Bearings. 3 Piece Thrust Bearings Open Type
- Thrust ball bearings provide for axial loads. They are designed to handle forces that push or pull along the axis of a rotating shaft
- Commonly used in automotive, electric motors, marine propulsion, pumps and compressors, aerospace applications, industrial machinery, and wind turbines.
- An expanded range may be available on special order. Please enquire.
- These bearings are designed so that when one ring turns, the other remains stationary.
- Some have a larger bore on one side allowing a shaft with no steps to pass through. Others have identical bores on each race, requiring a stepped shaft.
- Some have a reduced OD on one race allowing seating into an unstepped housing bore, whilst others will require a stepped housing to allow one ring to rotate.
- Please be sure to take note of the figures shown for ID and OD of both races to ensure you select the correct bearing.
Product Data

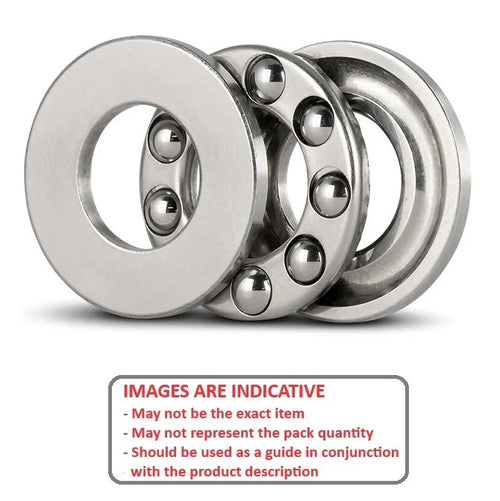

Thrust bearing with 2 Grooved Washers and retainerd Balls

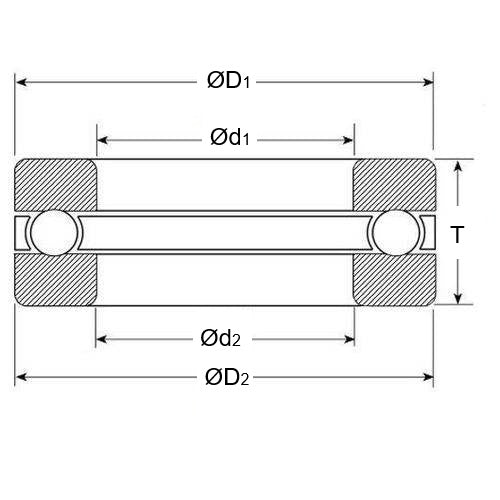

- Shaft Diameter (d1) : 5.000 mm
- O.D. (D1) 10.000 mm
- Thickness (T) 4.000 mm
- Bore (d2) 5.200 mm
- OD (D2) 10.000 mm
- Dynamic Load Capacity 92 kgf
- Cage Type SAE 52100 Chrome Steel
- Material Chrome Steel
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- RC Helicopter Parts
- Cross Fire Force® - F1 Electric - Thrust Bearing
- GS General Silicone - Vision Pro - Thrust Bearing
- Hobao® - Hyper GPX4 - Thrust Bearing
- HPI - Proceed - Thrust Bearing
- HPI - Proceed Update - Thrust Bearing
- Kyosho® - Evolva 2005 - Thrust Bearing
- Kyosho® - V-One RR Evolution - Thrust Bearing
- Kyosho® - V-One RRR - Thrust Bearing
- Mugen® - MTX-4 - Thrust Bearing
- Serpent® - 835 1-10 2WD - Thrust Bearing
- Serpent® - 835 1-10 4WD - Thrust Bearing
- Serpent® - 950 - Centax Clutch II Thrust Bearing
- Serpent® - 950 - Thrust Bearing
- Xray® - NT1 - Thrust Bearing
- Ergo® - 30 - Holder Thrust Bearing
- Hirobo® - Lepton EX - Thrust Bearing
- Hirobo® - Shuttle Plus - Replacement Thrust Bearing
- Hirobo® - Shuttle ZTS Upgrade Kit - Thrust Bearing
- Hirobo® - Shuttle ZXX - 2500-082 Thrust Bearing
- Hirobo® - Shuttle ZXX - Thrust Bearing
- Kyosho® - CONCEPT 30 DX Upgrade - Thrust Bearing
- Kyosho® - CONCEPT 30 SR-T - Thrust Bearing
- Kyosho® - CONCEPT 30-SX - 204 Thrust Bearing
- Synergy® - N9 - Thrust Bearing
- Thunder Tiger® - Raptor 30 Complete Kit - Replacement Thrust Bearing
Cross References
- Kyosho® 1135
- HIROBO 2500-082
- Nachi® 5TAM10
- ERGO 81029
- Origin® CRT5-10
- Origin® CT5-10
- BOCA® F5-10G
- CRT510
- CT510
- 2500082
- F510G
