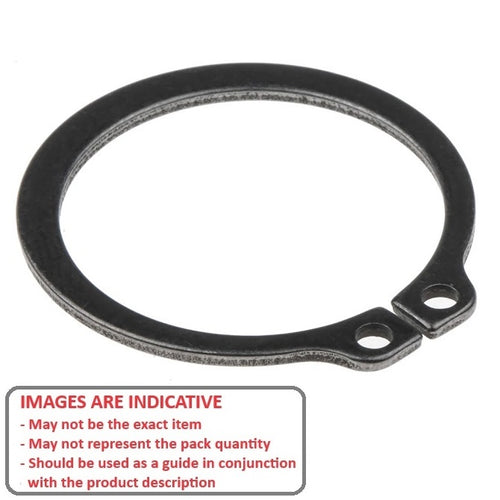

CCE-04800-C - Datasheet
MBA
Category Information
Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds) : 48.00 mm
- Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.06
(Equiv. 0.069 in.) - Groove Dia. (Dg)
45.50
mm
+ 0.00 / - 0.25
(Equiv. 1.791 in.) - Approx. Loose Circlip ID (A) 44.50 mm
- Groove Width (W) 1.85 mm
- Clearance on Shaft (C1) 62.50 mm
- Clearance in Groove (C1) 59.30 mm
- Min. Lug Diameter (h) 2.50 mm
- Min. Extension (n) 3.80
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-048
- 98541A364
- Seeger® A-048
- Seeger® A48
- Seeger® A48-ARS
- Seeger® A48X1.75
- Bossard® BN818-048
- Waldes® D1400-048
- Huyett® DSH-048
- NoCor® DSH-048
- Rotor Clip® DSH-048
- Seeger® NZT.A48
- A48ARS
- BN818048
- A048
- D1400048
- D1400-0480
- D14000480APP
- D1400-0480APP
- 471048
- DSH048
