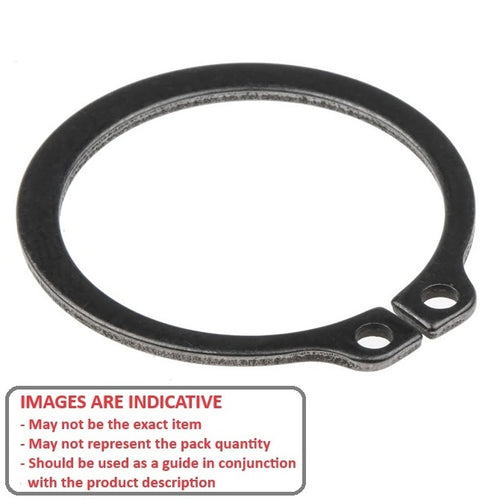

CCE-03800-C - Datasheet
MBA
Category Information
Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds) : 38.00 mm
- Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.06
(Equiv. 0.069 in.) - Groove Dia. (Dg)
36.00
mm
+ 0.00 / - 0.25
(Equiv. 1.417 in.) - Approx. Loose Circlip ID (A) 35.20 mm
- Groove Width (W) 1.85 mm
- Clearance on Shaft (C1) 50.20 mm
- Clearance in Groove (C1) 47.60 mm
- Min. Lug Diameter (h) 2.50 mm
- Min. Extension (n) 3.00
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-038
- 98541A152
- Seeger® A-038
- Seeger® A38
- Seeger® A38-BLS
- Seeger® A38X1.75
- Bossard® BN818-038
- Waldes® D1400-038
- Huyett® DSH-038
- NoCor® DSH-038
- Rotor Clip® DSH-038
- Seeger® NZT.A38
- A38BLS
- BN818038
- A038
- D14000380
- D1400-0380APP
- D14000380APP
- 471038
- DSH038
