CCE-03400-C - Datasheet
MBA
Category Information

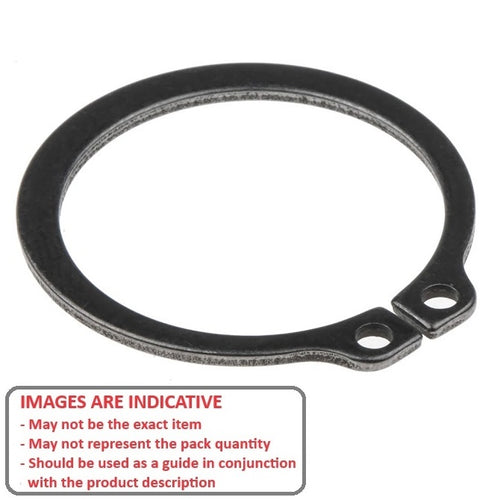

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds) : 34.00 mm
- Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.06
(Equiv. 0.059 in.) - Groove Dia. (Dg)
32.30
mm
+ 0.00 / - 0.25
(Equiv. 1.272 in.) - Approx. Loose Circlip ID (A) 31.50 mm
- Groove Width (W) 1.60 mm
- Clearance on Shaft (C1) 45.40 mm
- Clearance in Groove (C1) 43.10 mm
- Min. Lug Diameter (h) 2.50 mm
- Min. Extension (n) 2.60
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-034
- 98541A143
- Seeger® A-034
- Seeger® A34
- Seeger® A34-BLS
- Seeger® A34X1.5
- Bossard® BN818-034
- Waldes® D1400-034
- Huyett® DSH-034
- NoCor® DSH-034
- Rotor Clip® DSH-034
- Seeger® NZT.A34
- A34BLS
- BN818034
- A034
- D1400034
- D14000340APP
- D1400-0340
- D1400-0340APP
- 471034
- DSH034
