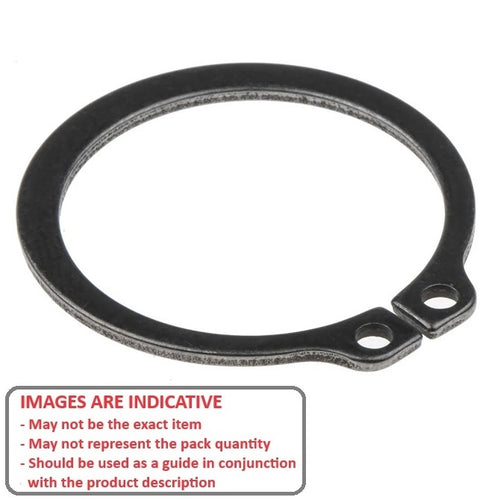

CCE-03200-C - Datasheet
MBA
Category Information
Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds) : 32.00 mm
- Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.06
(Equiv. 0.059 in.) - Groove Dia. (Dg)
30.30
mm
+ 0.00 / - 0.25
(Equiv. 1.193 in.) - Approx. Loose Circlip ID (A) 29.60 mm
- Groove Width (W) 1.60 mm
- Clearance on Shaft (C1) 43.00 mm
- Clearance in Groove (C1) 40.70 mm
- Min. Lug Diameter (h) 2.50 mm
- Min. Extension (n) 2.60
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-032
- 98541A139
- Seeger® A-032
- Seeger® A32
- Seeger® A32-BLS
- Seeger® A32X1.5
- Bossard® BN818-032
- Waldes® D1400-032
- Huyett® DSH-032
- NoCor® DSH-032
- Rotor Clip® DSH-032
- Seeger® NZT.A32
- A32BLS
- BN818032
- A032
- D1400032
- D1400-0320APP
- D14000320APP
- MD0471MQB032
- 471032
- DSH032
