RCL-032-065-S4 - Datasheet
MBA
Category Information

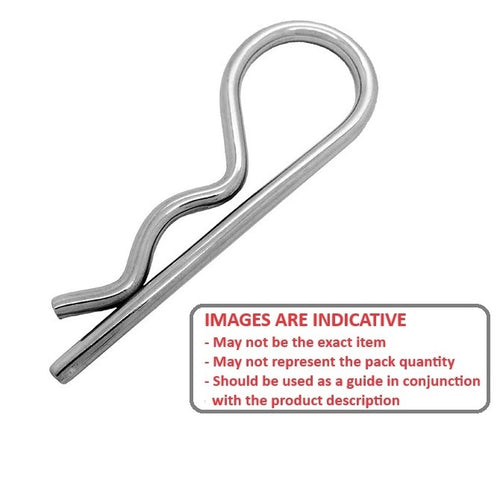

R Clips - Single Coil - Stainless SteelStainless Steel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
Product Data

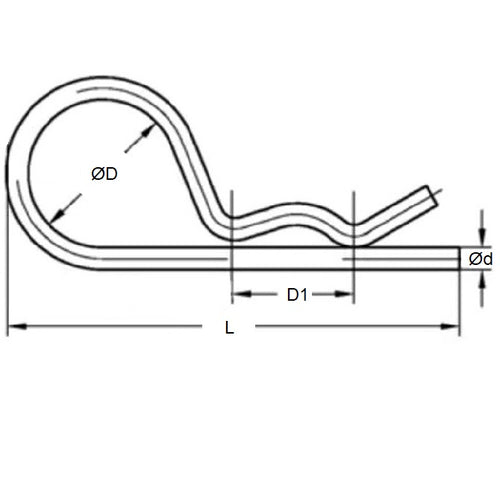

- Wire Thickness (d) : 3.20 mm
- Length (L) 65.0 mm
- Material 304 Stainless Steel
- Drill Hole Size 3.57 mm
- Approx.Inside Eye (D) 15.00 to 18.00 mm
- Shaft Size Range 11.11 to 19.05 mm
- Approx. Bridge Length (D1) 24 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- Huyett® BPS-211
