TR-286-306-064-S3 - Datasheet
MBA
Category Information

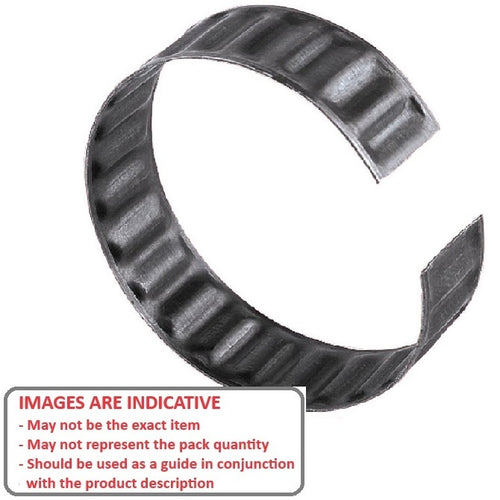

Retaining Rings - ToleranceTolerance Retaining Rings. Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
- An expanded range may be available on special order. Please enquire.
- Allows looser tolerances of components.
- Ideal for mounting ball bearings.
- Useful for salvaging worn parts.
- Permits low cost assembly by eliminating the need for conventional fasteners.
- Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.
Product Data
- Inner Part OD (d) : 28.575 to 28.524 mm
- Housing ID (D) 30.556 to 30.455 mm
- Ring Width (B) 6.35 mm
- Outer Part ID (DT) mm 30.277 to 30.175 For Torque Transfer
- Max. Design Torque 19.21 N.m
- Style For bearing OD
- Max. Radial Load 3203 N
- Max. Design Thrust 1334 N
- To Suit OD of Bearing R8
- Material Stainless Steel 301 (Similar to A2 or 302 or 304 or 18-8)
