CCE-02400-C - Datasheet
MBA
Category Information

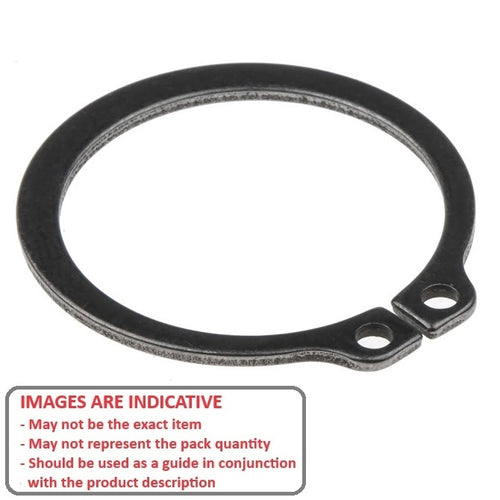

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds) : 24.00 mm
- Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.) - Groove Dia. (Dg)
22.90
mm
+ 0.00 / - 0.21
(Equiv. 0.902 in.) - Approx. Loose Circlip ID (A) 22.20 mm
- Groove Width (W) 1.30 mm
- Clearance on Shaft (C1) 33.20 mm
- Clearance in Groove (C1) 31.70 mm
- Min. Lug Diameter (h) 2.00 mm
- Min. Extension (n) 1.70
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-024
- 98541A125
- Seeger® A-024
- Seeger® A24
- Seeger® A24-BLS
- Seeger® A24X1.2
- Bossard® BN818-024
- Waldes® D1400-024
- Huyett® DSH-024
- NoCor® DSH-024
- Rotor Clip® DSH-024
- Seeger® NZT.A24
- A24BLS
- BN818024
- A024
- D14000240
- D1400-0240
- D1400-0240APP
- D14000240APP
- 471024
- DSH024
