Category Information

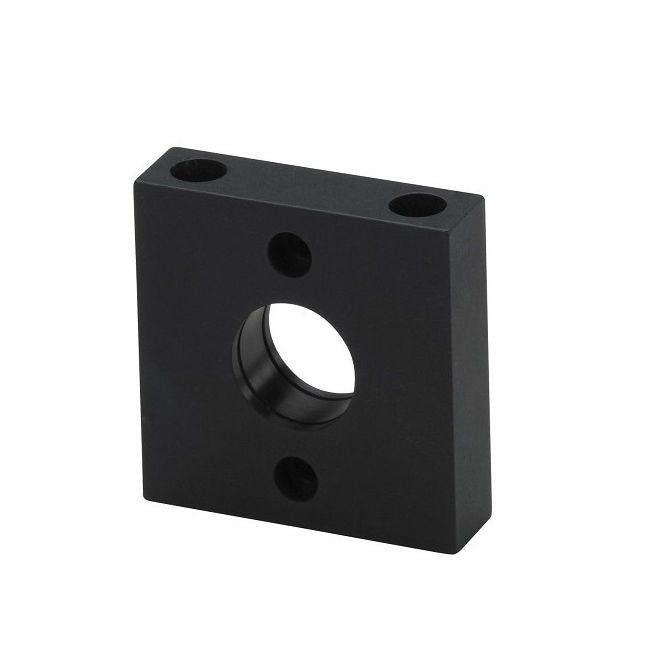

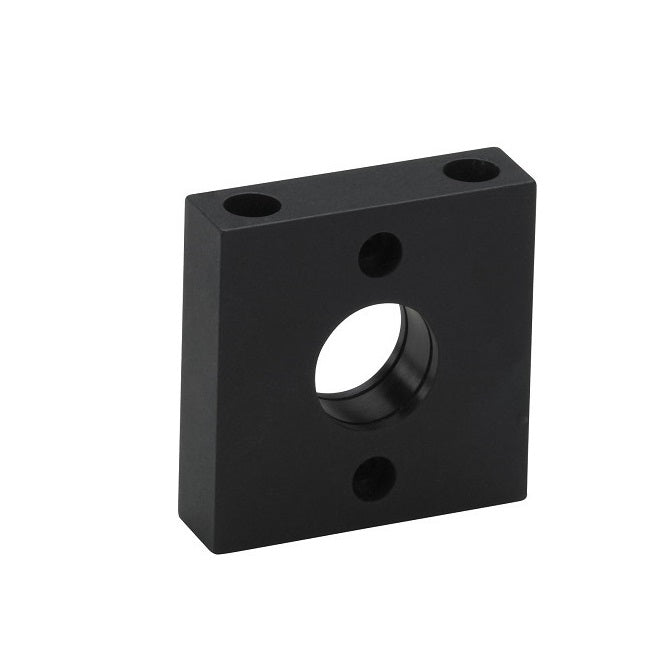

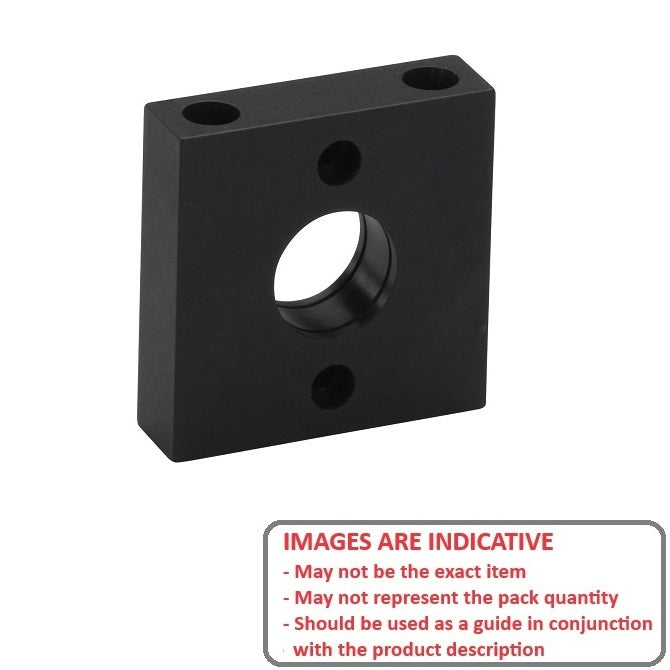

Housings - Square MiniatureSquare Miniature Housings. Aluminium housings to suit standard radial ball bearings.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- Use with standard radial ball bearings.
- Bearing not included.
- Can be through screwed from the top using socket head cap screws.
- Can be bolted from the bottom using the pre-tapped holes.
- Made from Aluminium 6082-T6 Black Anodised.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

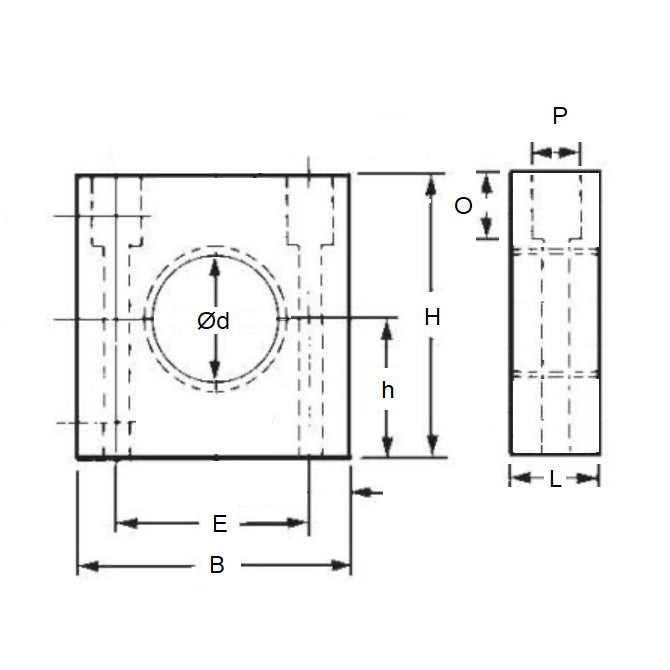

- Suitable Bearing OD (d H7) : 22.000 mm
- Width (L) 18.0 mm
- Length (B and H) 42.0 mm
- Through Screw Head (Px0) 9.0 x 5.3 mm
- Through Screw Size M5 (Hole is 5.3mm)
- Bottom Tapped Hole (TxN) M6 x 14 mm
- Screw Hole Centres (E) 30.0 mm
- Weight 0.07 kg
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BQH22
