CCE-02000-C - Datasheet
MBA
Category Information

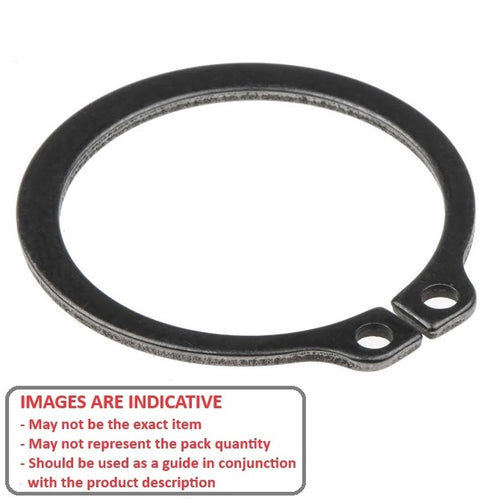

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds) : 20.00 mm
- Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.) - Groove Dia. (Dg)
19.00
mm
+ 0.00 / - 0.13
(Equiv. 0.748 in.) - Approx. Loose Circlip ID (A) 18.50 mm
- Groove Width (W) 1.30 mm
- Clearance on Shaft (C1) 28.40 mm
- Clearance in Groove (C1) 27.00 mm
- Min. Lug Diameter (h) 2.00 mm
- Min. Extension (n) 1.50
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-020
- 98541A123
- Seeger® A-020
- Seeger® A20
- Seeger® A20-BLS
- Seeger® A20X1.2
- Bossard® BN818-020
- Waldes® D1400-020
- Huyett® DSH-020
- NoCor® DSH-020
- Rotor Clip® DSH-020
- Seeger® NZT.A20
- A20BLS
- BN818020
- A020
- D1400020
- D1400-0200APP
- D14000200APP
- 471020
- DSH020
