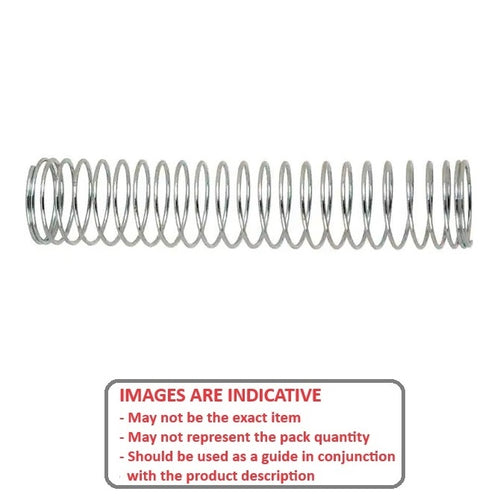

CS-0200-0100-013-S4-C - Datasheet
MBA
Category Information
Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data

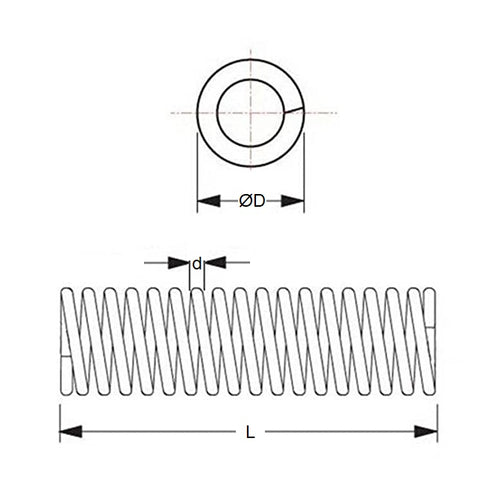

- Spring OD (D0) : 2.00 mm
- Free Length (L0) 10.0 mm
- Wire Diameter (d) 0.13 mm
- Loaded Height (L1) 4.00 mm
- Load at L1 0.29 N
- Rate (P/f) 0.0 N/mm
- Solid Height (Sh) 1.50 mm
- Approx. ID 1.7 mm
- End Type Closed
- Max Rod Dia. (A) 1.74 mm
- Material SUSS304-WPB / JIS Standard
Product Compliance and Data
Additional Resources
Cross References
- Misumi® C-UY2-10
- CUY210
