CCE-01800-C - Datasheet
MBA
Category Information

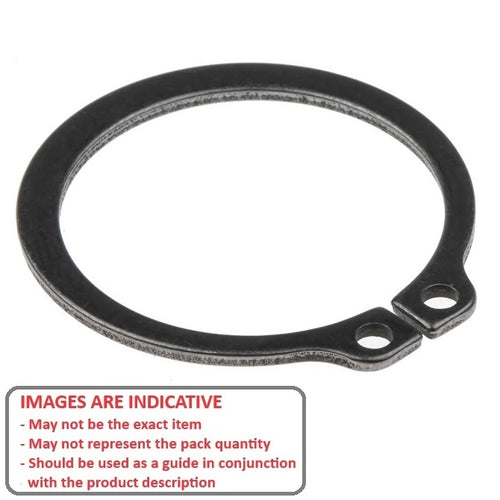

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds) : 18.00 mm
- Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.) - Groove Dia. (Dg)
17.00
mm
+ 0.00 / - 0.11
(Equiv. 0.669 in.) - Approx. Loose Circlip ID (A) 16.50 mm
- Groove Width (W) 1.30 mm
- Clearance on Shaft (C1) 26.20 mm
- Clearance in Groove (C1) 24.80 mm
- Min. Lug Diameter (h) 2.00 mm
- Min. Extension (n) 1.50
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-018
- 98541A122
- Seeger® A-018
- Seeger® A18
- Seeger® A18-BLS
- Seeger® A18X1.2
- Bossard® BN818-018
- Waldes® D1400-018
- Huyett® DSH-018
- NoCor® DSH-018
- Rotor Clip® DSH-018
- Seeger® NZT.A18
- BN818018
- A18BLS
- A018
- D14000180
- D1400-0180
- 471018
- DSH018
