CCE-01700-C - Datasheet
MBA
Category Information

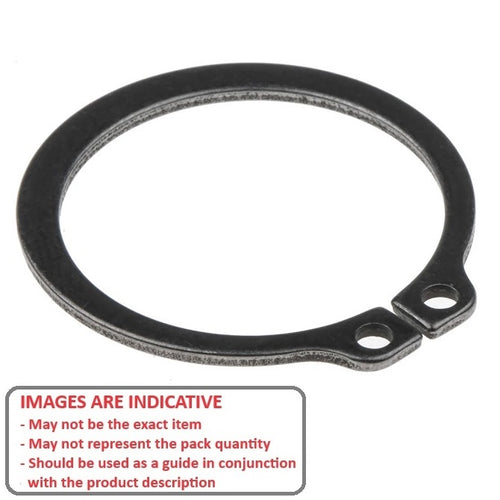

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds) : 17.00 mm
- Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.06
(Equiv. 0.039 in.) - Groove Dia. (Dg)
16.20
mm
+ 0.00 / - 0.11
(Equiv. 0.638 in.) - Approx. Loose Circlip ID (A) 15.70 mm
- Groove Width (W) 1.10 mm
- Clearance on Shaft (C1) 25.00 mm
- Clearance in Groove (C1) 23.80 mm
- Min. Lug Diameter (h) 1.70 mm
- Min. Extension (n) 1.20
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-017
- 98541A420
- Seeger® A-017
- Seeger® A17
- Seeger® A17-BLS
- Seeger® A17X1
- Bossard® BN818-017
- Waldes® D1400-017
- Huyett® DSH-017
- NoCor® DSH-017
- Rotor Clip® DSH-017
- Seeger® NZT.A17
- BN818017
- A017
- A17BLS
- D1400017
- D14000170
- D1400-0170
- 471017
- DSH017
