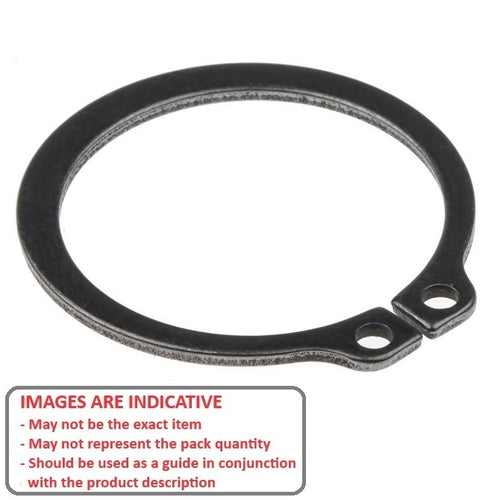

CCE-01700H-C - Datasheet
MBA
Category Information
Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds) : 17.00 mm
- Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.06
(Equiv. 0.059 in.) - Groove Dia. (Dg)
16.20
mm
+ 0.00 / - 0.11
(Equiv. 0.638 in.) - Approx. Loose Circlip ID (A) 15.70 mm
- Groove Width (W) 1.60 mm
- Clearance on Shaft (C1) 27.50 mm
- Clearance in Groove (C1) 26.20 mm
- Min. Lug Diameter (h) 2.00 mm
- Min. Extension (n) 1.50
- Standard Heavy Duty Variation DIN471 table 2
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 90030A104
- Seeger® AS-017
- Seeger® AS17X1.5
- Bossard® BN821-017
- Huyett® DSHR-017
- Ellison® EXT-017
- BN821017
- D14600170APP
- D1460-0170
- D1460-0170APP
- EXT017
- AS017
