Single Row Ball Bearings - 12x24x6 mm - Chrome Steel SAE 52100 - High Speed Polyamide Cage

6901-RB-C3-T9H-AF12-E

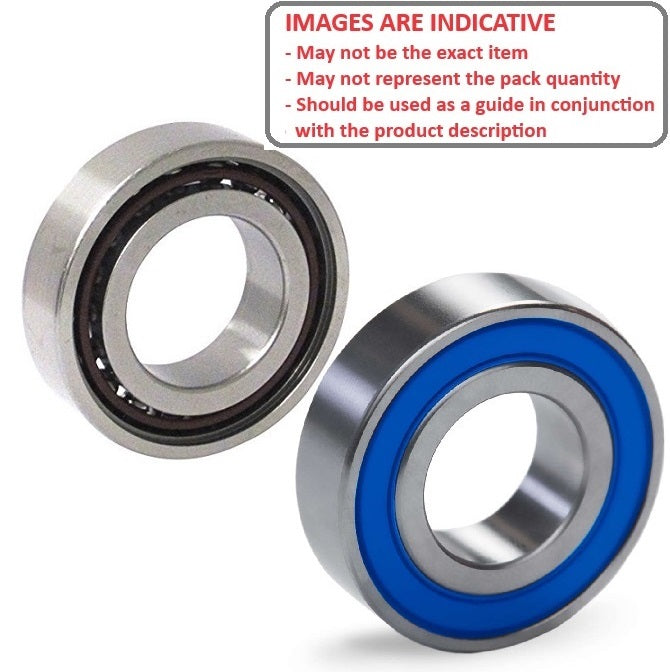

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 12x24x6 mm - Chrome Steel SAE 52100 - High Speed Polyamide Cage
1 4

MBA

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Qty: 10 available now
Only 10 may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

Product Details:

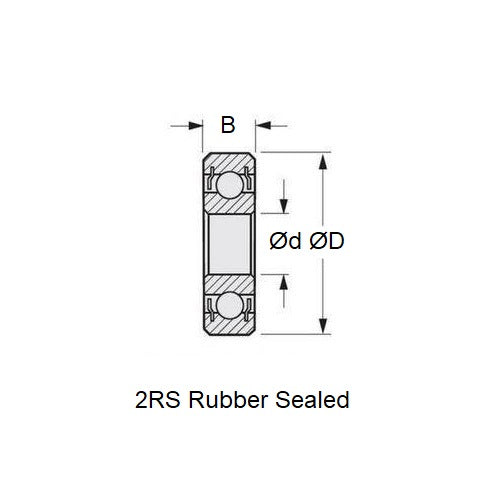

ID (d): 12.000mm
+ 0.000 / - 0.0075
(12.000mm is 0.472 in.)

Chrome Steel SAE 52100 - High Speed Polyamide Cage
  • OD (D): 24.000mm
    + 0.000 / - 0.010
    (24.000mm is 0.945 in.)
  • Width (B): 6.000mm
    + 0.000 / - 0.125
    (6.000mm is 0.236 in.)
  • Precision Grade: Abec 1
  • Closure Type: RB
  • Bearing Type: Radial
  • Made In: European WIB/GRW

Brand: MBA
Country of Origin: CH

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternative Parts Include: MR6901TNH, 61901-RSF-T9H-C3-WW-AF2, 6901, 6901T9HRBC3AF12E, 3600905083, BOSCH, WIB, BOCA, 6901BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
