G051B-012-V6-381-254-C-G - Datasheet
MBA
Category Information

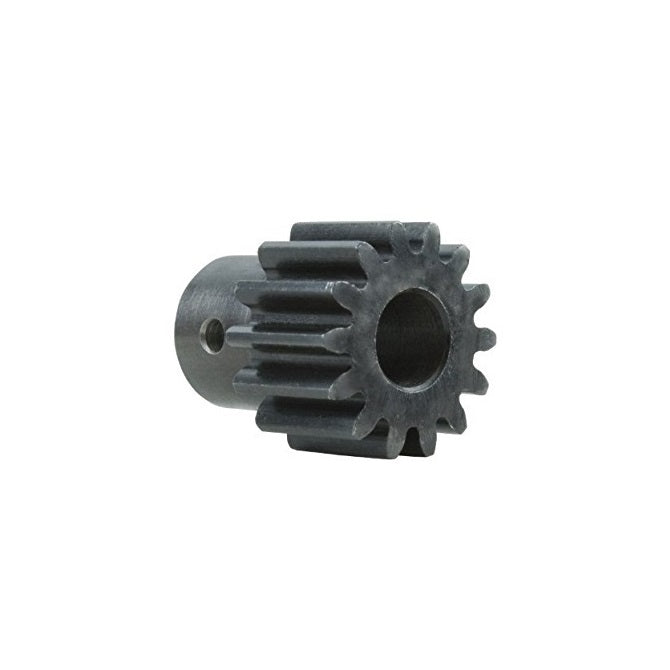

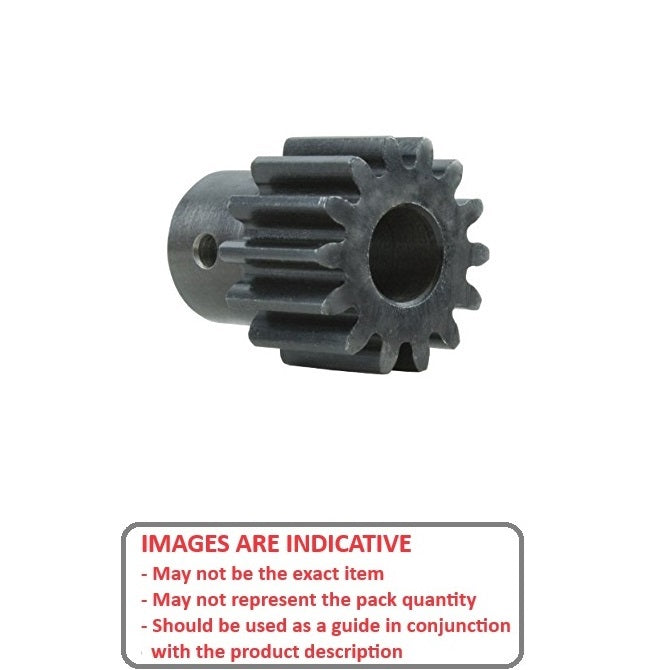

Gears - Spur - Hubbed - 6DP Steel6DP Steel Hubbed Spur Gears. PCD = No. of Teeth x 4.233mm (1/6 in.). 14.5 Degree Pressure Angle. Steel. DP stands for Diametrical Pitch and is an imperial measurement system.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1 inch for every 6 teeth
- 6 Diametrical Pitch. Approx 13.3mm between the teeth.

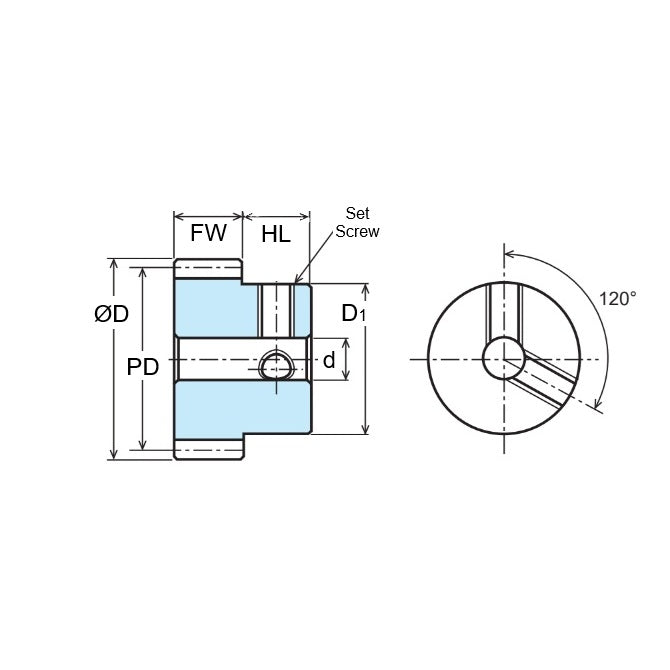

Product Data
- Number of Teeth : 12
- Pitch Circle Diameter (PD) 50.800 mm
- Bore (d) 25.400 mm
- Outside Diameter (OD) 59.258 mm
- Face Width (FW) 38.100 mm
- Type Hubbed
- Hub Diameter (D1) 37.084 mm
- Hub Projection (HL) 22.352 mm
- Locking Method None
- Quality Commercial
- Material Steel 0.20 carbon steel with no subsequent treatment
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® GE-0612
- Boston Gear® NJ12
- GE0612
- G051B12V6381254CG
