RCL-016-033-S6 - Datasheet
MBA
Category Information

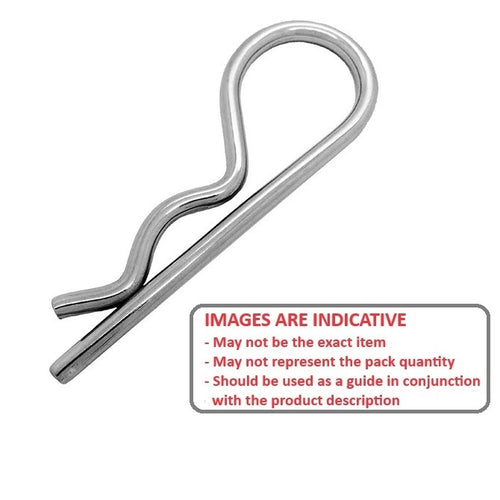

R Clips - Single Coil - Stainless SteelStainless Steel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
Product Data

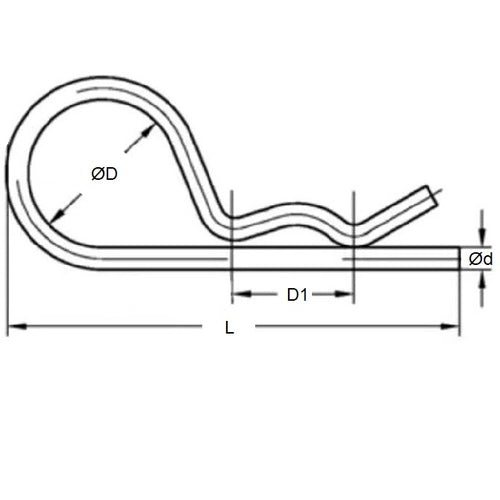

- Wire Thickness (d) : 1.60 mm
- Length (L)
33.0
mm
+/- 2.0
(Equiv. 1.299 in.) - Material 316 Stainless Steel
- Drill Hole Size 1.98 mm
- Approx.Inside Eye (D) 7.00 to 9.00 mm
- Shaft Size Range 6.35 to 12.70 mm
- Approx. Bridge Length (D1) 13 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- Huyett® BPS6-222/D
- NoCor® BPS6-222/D
- BPS6222/D
