RCL-012-015-S4 - Datasheet
MBA
Category Information

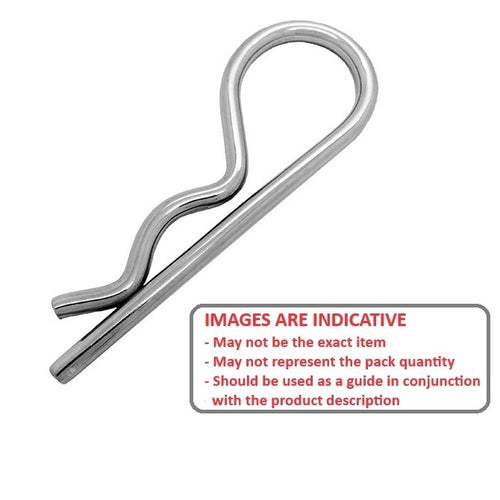

R Clips - Single Coil - Stainless SteelStainless Steel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
Product Data

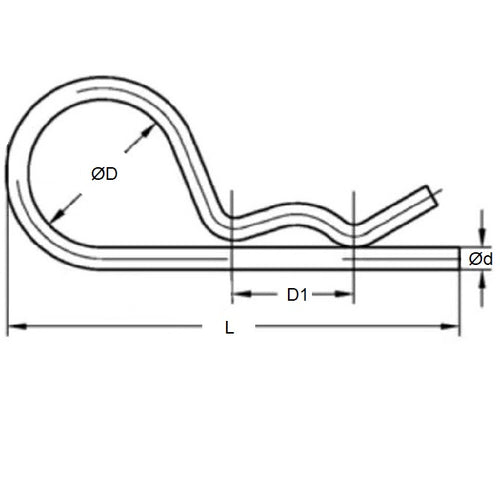

- Wire Thickness (d) : 1.20 mm
- Length (L) 15.0 mm
- Material 304 Stainless Steel
- Drill Hole Size 1.59 mm
- Approx.Inside Eye (D) 3.00 to 4.00 mm
- Shaft Size Range 3.18 to 4.76 mm
- Approx. Bridge Length (D1) 5 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- Huyett® BPS-221/D
