REM-120F-R-CB - Datasheet
MBA
Category Information

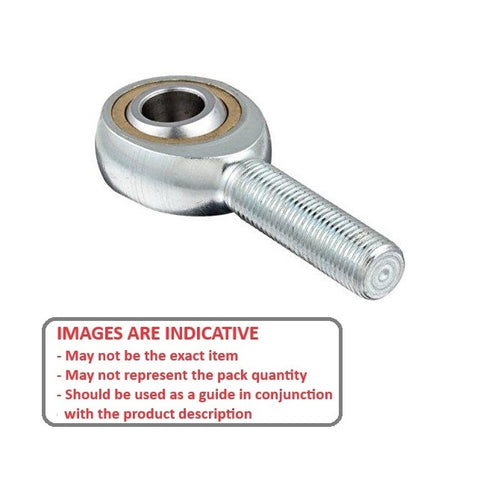

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

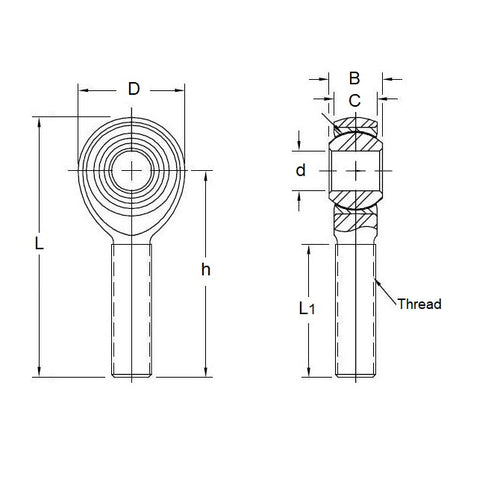

Product Data
- Eye Size (d1) : 12.00 mm
- Overall Length (L) 70.00 mm
- Thread Size M12x1.25 Right
- Min. Thread Length (l2) 33.00 mm
- Head Width (W) 12.00 mm
- Eye Width (W1) 16.00 mm
- Head Diameter (D) 32.00 mm
- Centre Height (l1) 54.00 mm
- Grease Nipple No
- Material Bronze Lined Steel
