REM-120F-R-S4 - Datasheet
MBA
Category Information

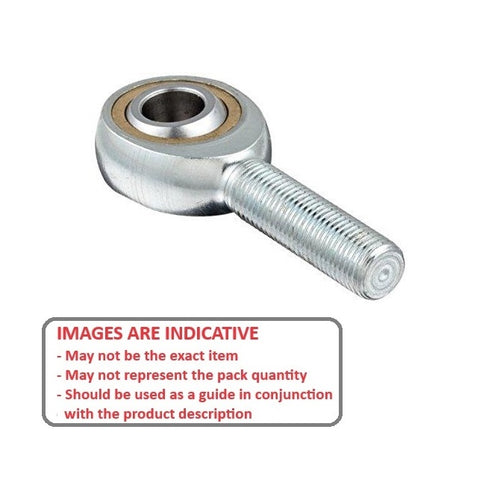

Rod Ends - Male - Stainless - 304304 Stainless Male Rod Ends. Forged stainless steel 304 ball and body and race. Rolled thread.
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

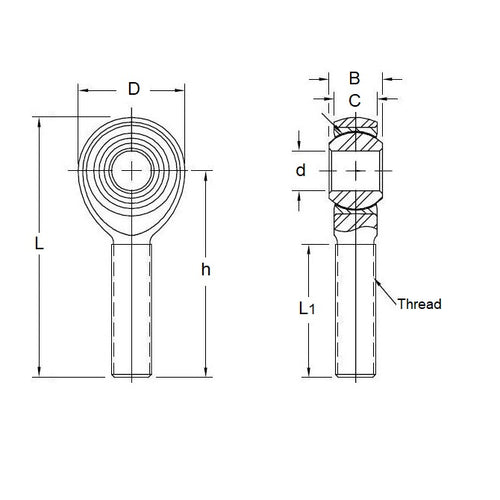

Product Data
- Eye Size (d1) : 12.00 mm
- Overall Length (L) 71.00 mm
- Thread Size M12x1.25 Right
- Thread Length (l2) 35.00 mm
- Head Width (W) 12.00 mm
- Eye Width (W1) 16.00 mm
- Head Diameter (D) 32.00 mm
- Centre Height (l1) 56.00 mm
- Grease Nipple No
- Material Stainless Steel 304
