Category Information

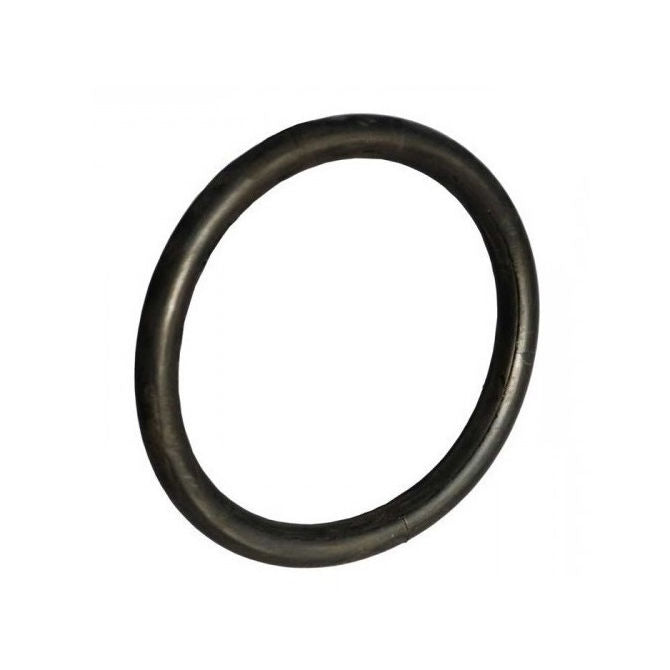

O-Rings - General Purpose - Nitrile Rubber PacksNitrile Rubber Packs General Purpose O-Rings. General purpose. Includes o-rings for dental handpiece applications.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -30 Deg C to +90 Deg C.
- Nitrile: Excellent resistance to mineral oil based fluids, hydrocarbon fuels, greases and water.
- Not suitable for aromatic hydrocarbons, chlorinated hydrocarbons, brake fluid and some fire resistant hydraulic fluids.
- If you need a larger quantity, please check the BULK category for these o-rings.
Product Data
- Inside Diameter (ID)
:
27.94
mm
(Equiv. 1.1 in.) - Section (t)
5.33
mm
(Equiv. 0.21 in.) - Colour Black
- Hardness Duro 70
- Material Nitrile (NBR, BUNA-N)
Product Compliance and Data
Additional Resources
Cross References
- 9452K207
- ORB02794533N70320
- ORB-02794-533-N70-320
- BS320-NBR70
- BS320NBR70
