OR-01229-353-N70-206 - Datasheet
MBA
Category Information

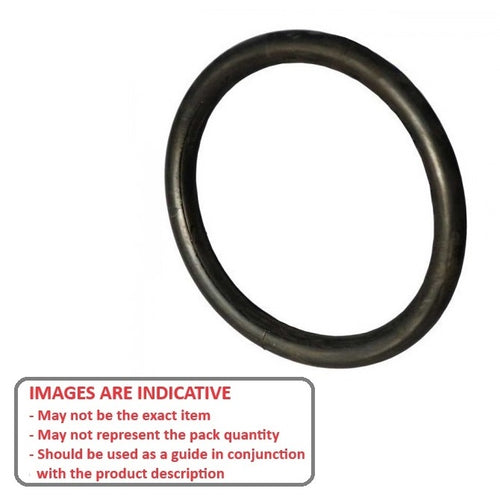

O-Rings - General Purpose - Nitrile Rubber PacksNitrile Rubber Packs General Purpose O-Rings. General purpose. Includes o-rings for dental handpiece applications.
- Neoprene and Nitrile O-Rings with excellent resistance to ageing and weathering effects.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -30 Deg C to +90 Deg C.
- Nitrile: Excellent resistance to mineral oil based fluids, hydrocarbon fuels, greases and water.
- Not suitable for aromatic hydrocarbons, chlorinated hydrocarbons, brake fluid and some fire resistant hydraulic fluids.
- If you need a larger quantity, please check the BULK category for these o-rings.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

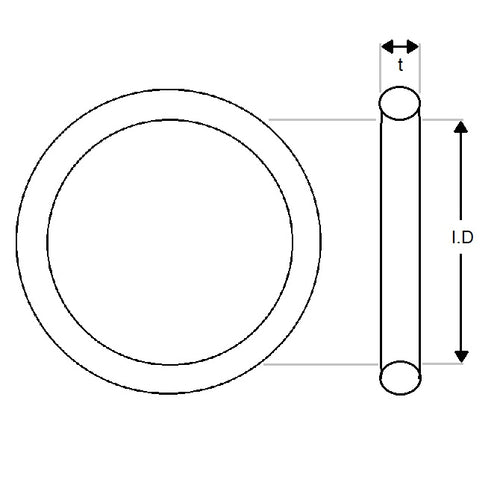

- Inside Diameter (ID)
:
12.29
mm
(Equiv. 0.484 in.) - Section (t)
3.53
mm
(Equiv. 0.139 in.) - Colour Black
- Hardness 70 Durometer
- Material Nitrile (NBR, BUNA-N)
Product Compliance and Data
Additional Resources
Cross References
- 9452K185
- Small Parts ORB-206
- ORB206
- ORB01229353N70206
- ORB-01229-353-N70-206
- BS206-NBR70
- BS206NBR70
