OR-00074-102-N70-001 - Datasheet

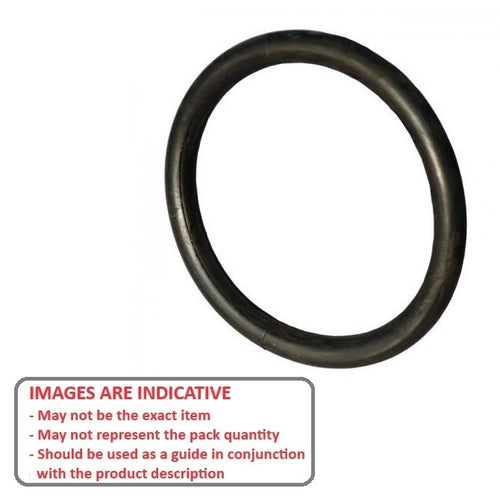

Name: 1002510 | OR-00074-102-N70-001 (PK-100) --- General Purpose O-Rings - 0.74x1.02 mm - Black Nitrile Rubber Packs - Nitrile NBR, BUNA-N O-Ring
Rating: 5.0 (1 reviews)

MBA

Category Information

O-Rings - General Purpose - Nitrile Rubber Packs

Nitrile Rubber Packs General Purpose O-Rings. General purpose. Includes o-rings for dental handpiece applications.

Neoprene and Nitrile O-Rings with excellent resistance to ageing and weathering effects.
Mulitple packs may be supplied together in a singular package.
Temperature Range: -30 Deg C to +90 Deg C.
Nitrile: Excellent resistance to mineral oil based fluids, hydrocarbon fuels, greases and water.
Not suitable for aromatic hydrocarbons, chlorinated hydrocarbons, brake fluid and some fire resistant hydraulic fluids.
If you need a larger quantity, please check the BULK category for these o-rings.

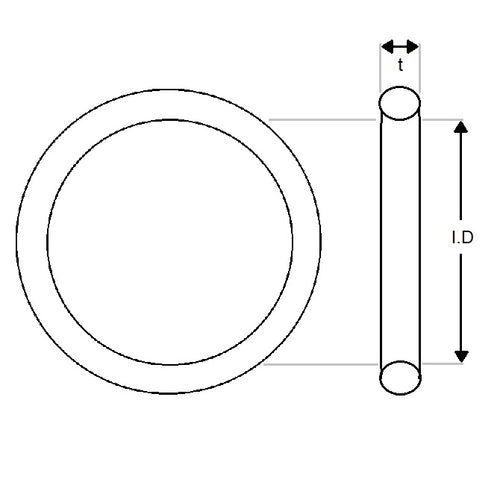

Product Data

Inside Diameter (ID) : 0.74 mm
(Equiv. 0.029 in.)
Section (t) 1.02 mm
(Equiv. 0.04 in.)
Colour Black
Hardness Duro 70
Material Nitrile (NBR, BUNA-N)

Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

9452K111
Small Parts ORB-001
BS001
BS001NBR70
BS001-NBR70
ORB-00074-102-N70-001
ORB00074102N70001
ORB001
