OR-03465-178-CR70-028 - Datasheet
MBA
Category Information

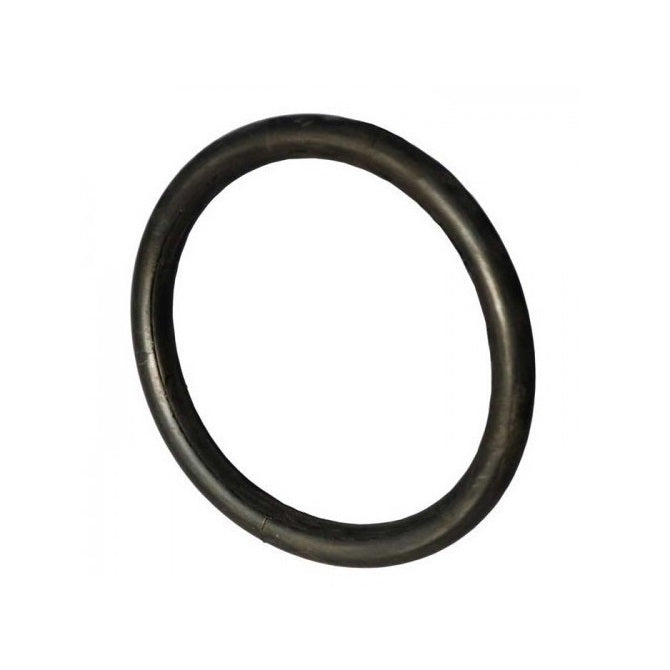

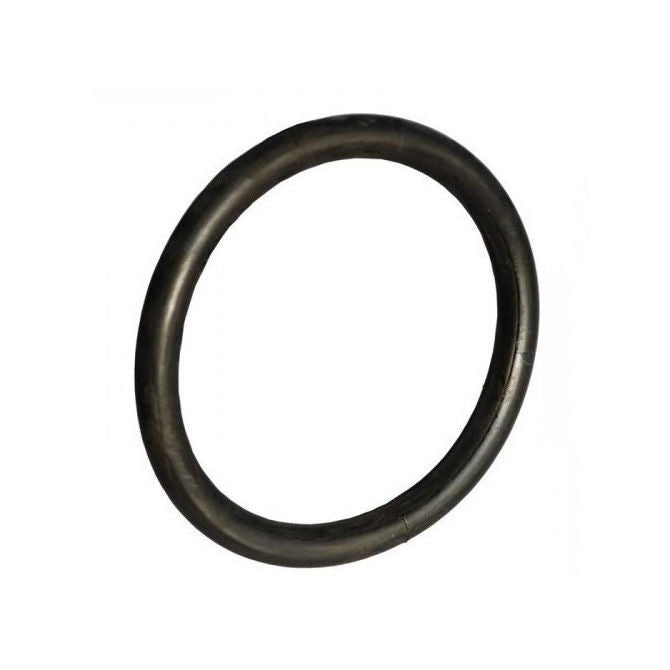

O-Rings - General Purpose - Neoprene Rubber PacksNeoprene Rubber Packs General Purpose O-Rings. Excellent resistance to ageing and weathering effects.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -20 Deg C to +100 Deg C.
- Resistant to ozone and refrigeration chemicals such as freon 12 and 22.
- Moderate resistance to swelling in mineral oils, greases and water.
- Not resistant to aromatic compounds such as benzene, toulene, chlorinated hydrocarbons, esters, ethers or ketones.
- If you need a larger quantity, please check the BULK category for these o-rings.
Product Data
- Inside Diameter (ID)
:
34.65
mm
(Equiv. 1.364 in.) - Section (t)
1.78
mm
(Equiv. 0.07 in.) - Colour Black
- Hardness Duro 70
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- ORB03465178CR70028
- ORB-03465-178-CR70-028
- BS028CR70
- BS028-CR70
