KM080M-050-5L24 - Datasheet

MBA

Category Information

Knobs - Lobe - Five Lobe - Male - Standard

Standard Male Five Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M8 (8x1.25mm)
  • Head Diameter (A) 50.00 mm
  • Thread Length 24.0 mm
  • Colour Black
  • Hub Diameter (C) 25.00 mm
  • Hub Length (D) 17.50 mm
  • Knob Height (B) 35.00 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® KPB-1047
  • KPB1047
View full details

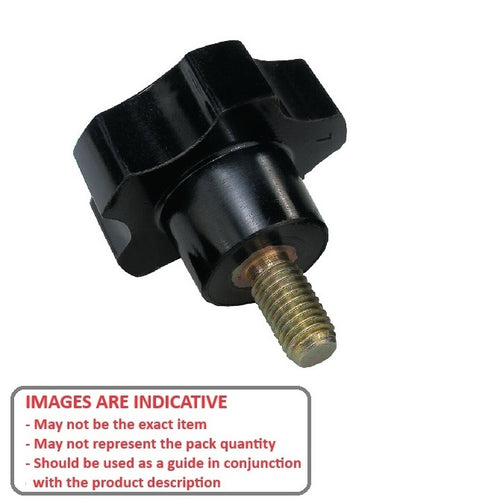

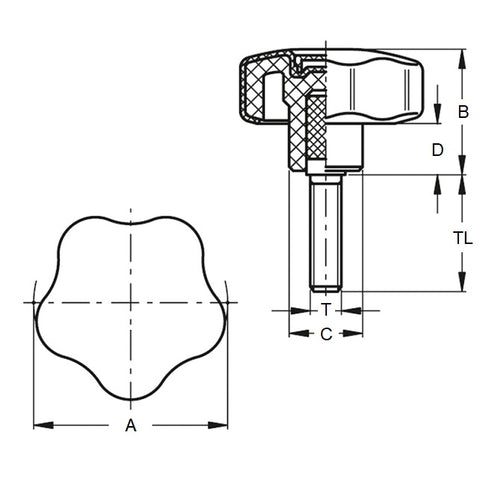

KM080M-050-5L24DiagramKM080M-050-5L24Image
