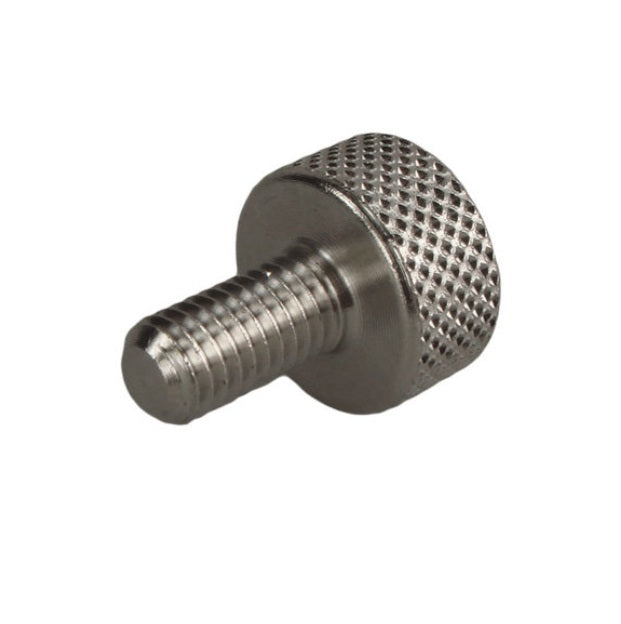

THS060M-016-K-3 - Datasheet

MBA

Product Data

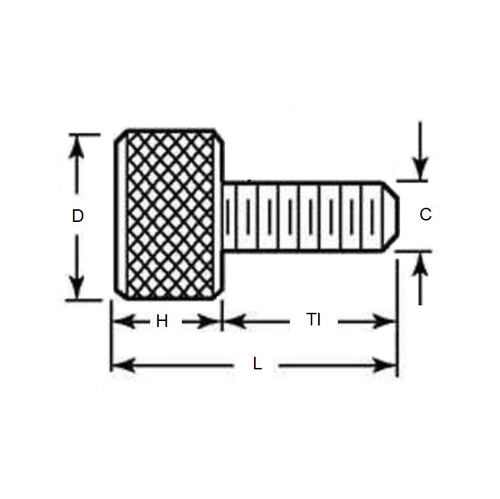

• Thread Size (C) : M6 (6x1mm)
• Thread Length (Tl) 16.00 mm
• Overall Length (L) 21.00 mm
• Head Diameter (D) 24.00 mm
• Head Height (H) 5.00 mm
• Finish Plain
• Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• PDF Screws Catalogue

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 92545A191
• Reid Tool® AJ-663
• Misumi® C-NKOSC6-16-20
• Misumi® C-NOOS6-16
• Misumi® C-NOSC6-16-20
• CNOOS616
• CNOSC61620
• CNKOSC61620
• AJ663
