SHX-T-060M-018-010-S3 - Datasheet

MBA

Category Information

Spacers - Threaded - Hex - 303-304 Stainless Steel

303-304 Stainless Steel Hex Threaded Spacers. Threaded Hex Spacers. Also known as coupling nuts, joiner or connector.

    Product Data

    • Thread Size : M6 (6x1mm)
    • Length (L) 18.0 mm
    • Across Flats (A/F) 10.0 mm
    • Minimum Thread Length (TL) Full Thread 18 mm
    • Finish None
    • Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80
    Country of Origin: GB

    Product Compliance and Data

    Additional Resources

      Cross References

      • SHXT060018010S3
      View full details

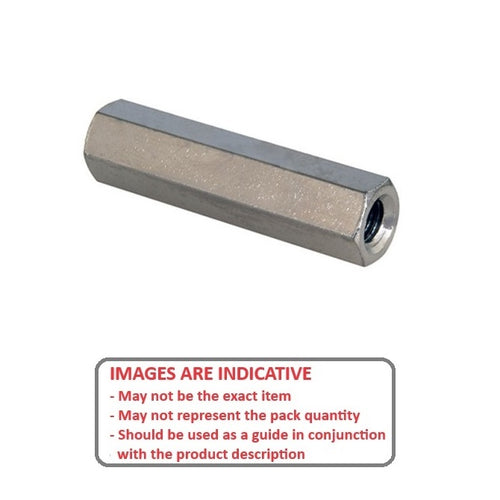

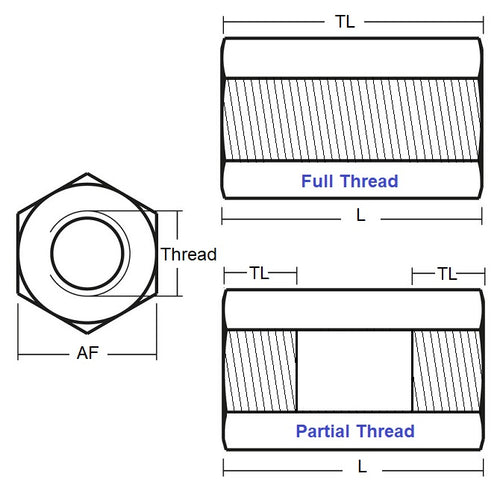

      SHX-T-060M-018-010-S3DiagramSHX-T-060M-018-010-S3Image
