Miniature Bearings Australia
THS050M-009-K-3 - Datasheet
MBA
Category Information
Screws - Thumb - Knurled - Stainless - StandardStandard Stainless Knurled Thumb Screws. Stainless steel knurled head thumb screws
- An expanded range may be available on special order. Please enquire.

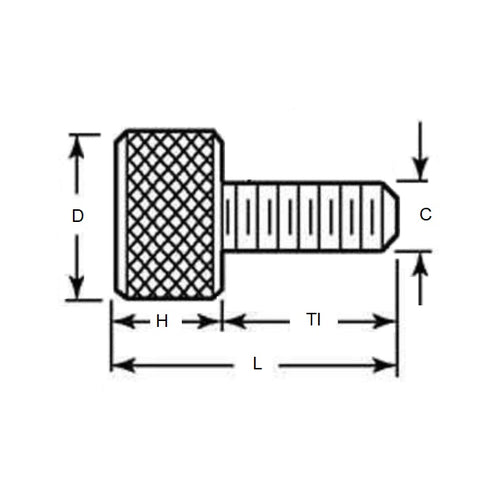

Product Data
- Thread Size (C) : M5 (5x0.8mm)
- Thread Length (Tl) 9.00 mm
- Overall Length (L) 14.00 mm
- Head Diameter (D) 11.00 mm
- Head Height (H) 5.00 mm
- Finish Plain
- Material Stainless Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92545A163
- Reid Tool® AJ-642
- AJ642
