NT050M-BL-CZ - Datasheet
MBA
Category Information
Nuts - Blind - StandardStandard Blind Nuts. Blind nuts - Tee nuts.
- Put steel threads in soft materials like wood without counterboring.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

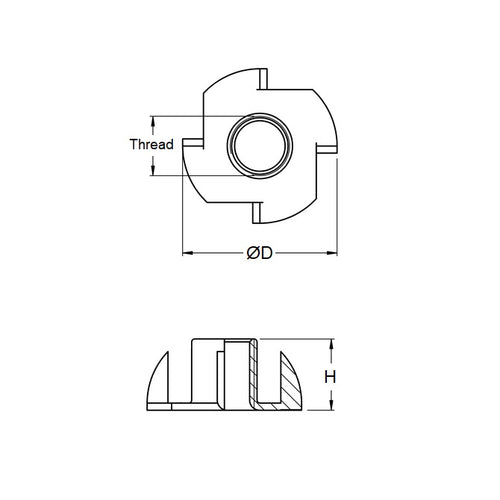

- Thread Size : M5 (5x0.8mm)
- Flange Diameter 19 mm
- Barrel Height 9.1 mm

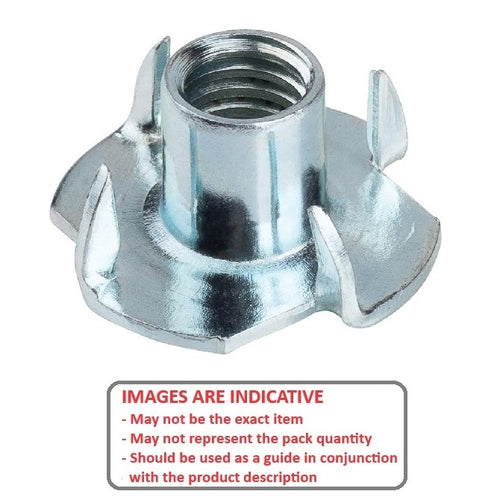

- Type Tee Nut
- Pitch 0.800 mm
- Threads Per Inch 31.75 TPI
- Material Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98965A210
- MicroFast® BNM5
