KF050M-015-KN-PH - Datasheet

MBA

Category Information

Knobs - Knurled - Female - Phenolic

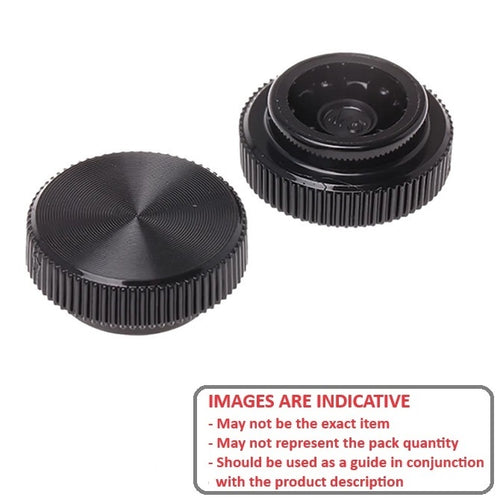

Phenolic Female Knurled Knobs. Plastic (high grade gloss black phenolic) with Steel Insert.

    Product Data

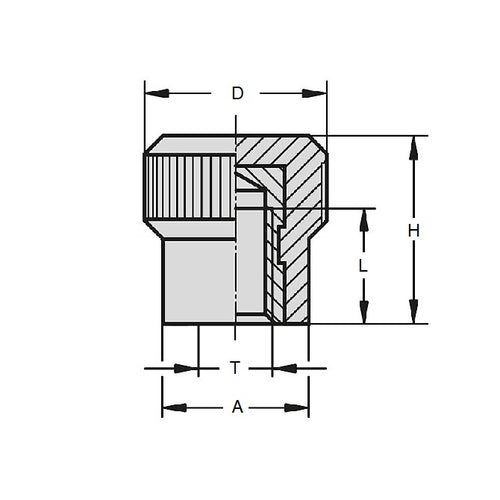

    • Thread Size : M5 (5x0.8mm)
    • Head Diameter (A) 15.00 mm
    • Screw Length 10.0 mm
    • Knob Length (B) 15.5 mm
    • Hub Thickness (C) 12.0 mm
    • Material Phenolic
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • Reid Tool® KPB-1013
    • KPB1013
    View full details

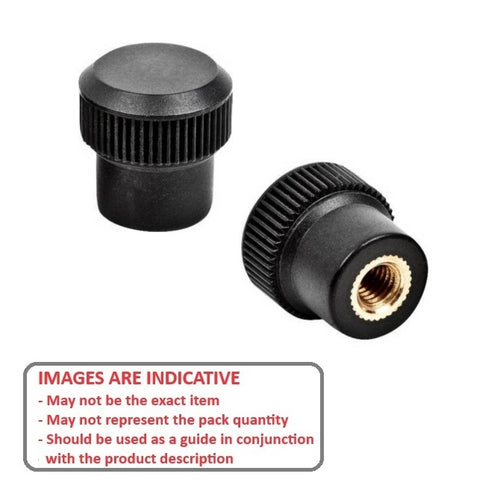

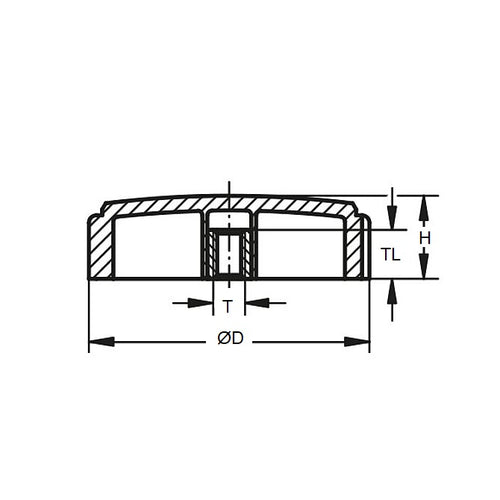

    KF050M-015-KN-PHDiagramKF050M-015-KN-PHImage
