NT040M-DM-S6 - Datasheet

Brighton Best

Product Data

• Thread Size : M4 (4x0.7mm)
• Material 316 Stainless

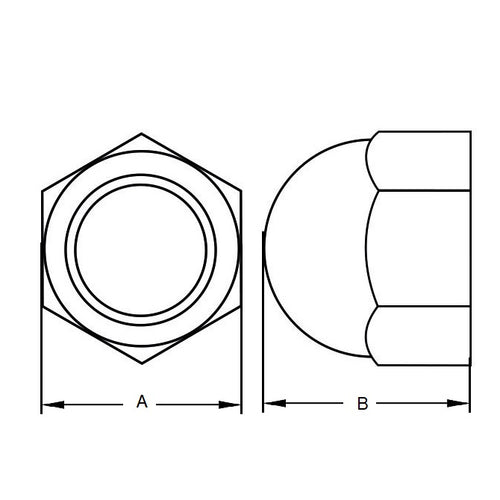

• Height (B) 8 mm
• Across Flats (A) 7
• Pitch 0.700 mm
• Threads Per Inch 36.29 TPI
• Material Stainless Steel 316 (Similar to A4 or 18-10)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best® 566032
• 95514A102
