NT040M-WG-NY - Datasheet

MBA

Product Data

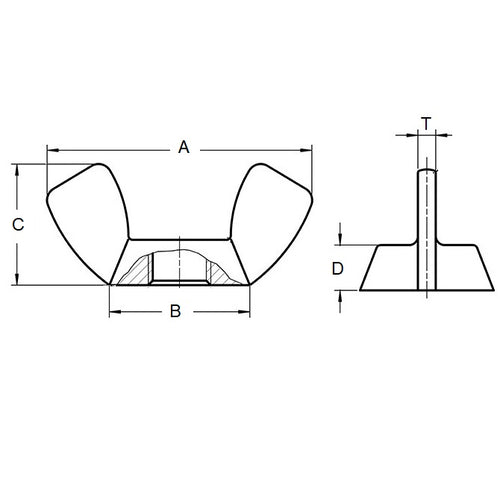

• Thread Size : M4 (4x0.7mm)
• Overall Length (A) 14.0 mm
• Base Diameter (B) 8.0 mm
• Body Height (D) 2.0 mm
• Overall Height (C) 7.0 mm

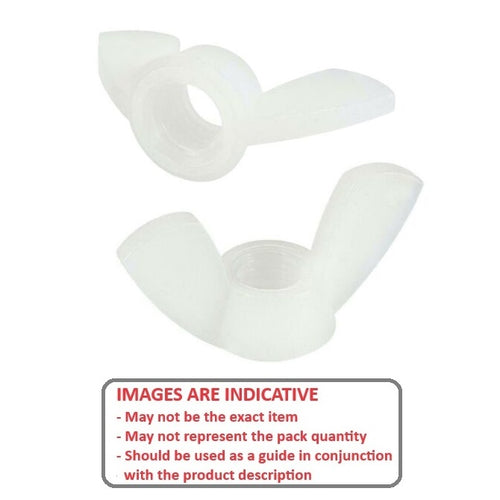

• Material Natural Nylon 6.6

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 92124A510
• PWING-M4
• PWINGM4
