NT035M-HX-CZ - Datasheet
MBA
Category Information

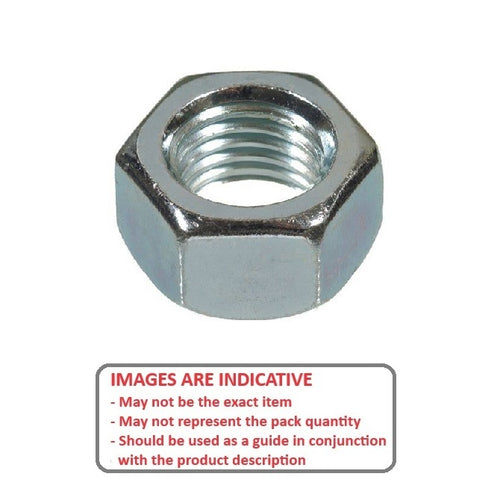

Nuts - Hexagonal - Full - SteelSteel Full Hexagonal Nuts. UNC - UNF - BA - METRIC. Plain and Zinc Plated.
- An expanded range may be available on special order. Please enquire.

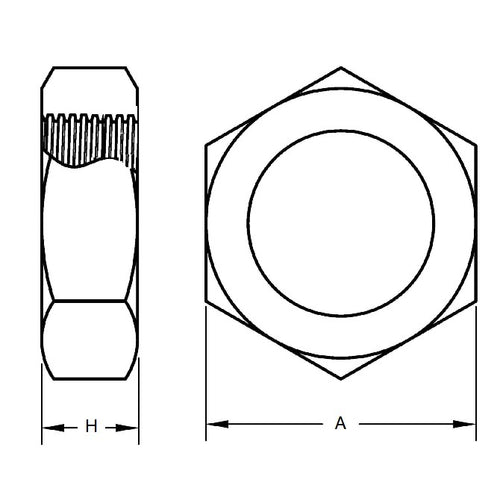

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : M3.5 (3.5x0.6mm)
- Thickness (H) 2.8 mm
- Across Flats (A/F) 6.00 mm
- Type Standard
- Pitch 0.600 mm
- Threads Per Inch 42.33 TPI
- Material Steel - Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 90591A131
- MicroFast® HNM035
- Hitech MSHNZP35
